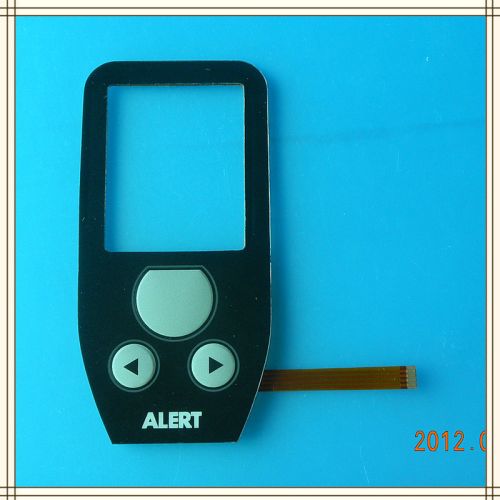

Contact SupplierWe are offering fpc membrane keypad.
A. Emboss membran keyapd design options:
1) graphic overlay with or without embossing.
2) tactile with metal dome or polydome or non-tactile
3) embedded led or other surface mount components.
4) waterproof or uv resistant.
5) electroluminescent backlighting.
6) esd shielding (aluminum foil or whole layer with silver and carbon coated).
7) tail with or without connector (male or female pin).
8) overlay material : polyester and polycarbonate
technical parameter:
1. Maximum circuit rating: 35vdc, 100ma, 1w
2. Contact resistance: 10~ 500 ohm
3. Insulation resistance: 100m ohm at 100vdc
4. Dielectric withstand: 250rms (50~60hz per min)
5. Contact bounce:
