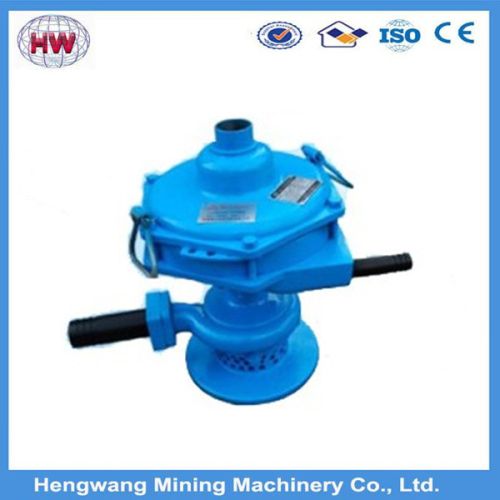

FQW20-50/WK Mine Pneumatic Turbine Submersible Pump

FQW20-50WKMine pneumatic turbine submersible pump regarded compressed air as power source. Regarded dirt, small diameter of solid particle in the mine wastewater as the object of delivery. Using scuba diving (in addition to the exhaust pipe above the water, including water inlet, pump, pump cover, pump body into the water.) work solid-liquid two phase medium pumping equipment, also carry water.
1. Depth of the submersible pump: not more than 0.40 m;
2. Transport medium temperature : not more than 40 ℃;
3. Working environment temperature: (2 ~ 40 )℃;
4. Medium PH: within 4 ~ 10;
Model Rated flow Q Rated head
H Rated wind pressureP Rated air consumption
Q Noise Max particles Put out water hose bore Enter gas hose bore Weight Dimension mm
m³h m MPa m³h dB mm mm mm kg L×W×H
FQW20-50WK 20 50 0.55 302 80 8 38（1.5INCH） 25（1INCH） 25 600×500×630
FQW15-60WK 15 60 0.55 300 85 8 38（1.5INCH） 25（1INCH） 25 600×500×630
