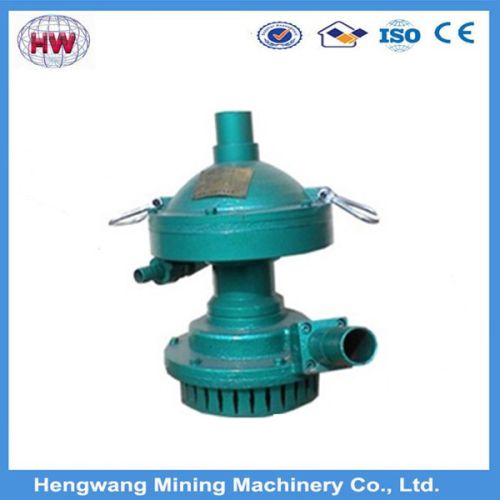

FQW8-40/W Mine Pneumatic Submersible Pump

We offer Mine pneumatic submersible pump
1. Depth of the submersible pump: not more than 0.40 m;
2. Transport medium temperature : not more than 40 ℃;
3. Working environment temperature: (2 ~ 40 )℃;
4. Medium PH: within 4 ~ 10;
5. Containing solid particles max sewage pump diameter less than 8 mm, Its volume concentration is less than 3%;
6. Pump is driven by compressed air pressure within the range (0.45 ~ 0.70 )MPa, and satisfy the requirement of gas consumption.
It is suitable for methane or coal dust explosion danger spots domestic sewage. It can be widely used in the coal mine's operation. Transport pulverized coal, silt dirt, etc,solid particle in groundwater. Impeller with special design, drainage ability. Don’t blockage because of solid particles or fiber content of inhaled, and it will not be premature failure due to the inhalation of particulate medium.
The machine has simple structure and moving, installation, maintenance is convenient. With advantages of high efficiency, good performance, low consumption volume, etc.
Model rated flowQ Rated Lift H rated wind pressure P rated air consumption
Q Noise max-flowm³h Max particles
water hose diameter Enter gas hose diameter Weight Boundary dimension mm
m³h m MPa m³h dB mm mm mm kg L×W×H
FQW8-40W 8 40 0.55 210 85 30 6 38（1.5 inch） 25（1inch） 35 400×260×430
FQW10-50W 10 50 0.55 210 85 30 6 38（1.5inch） 25（1inch） 35 400×260×430
