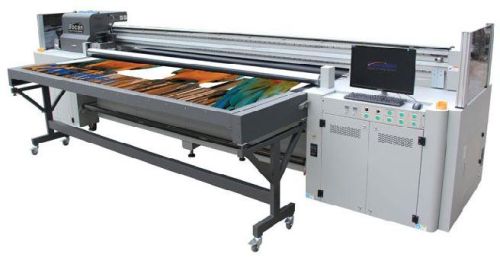

FR3210 Docan Hybrid Printer

Sold By : Infinity Digital Solutions Pvt. Ltd.

Product Specifications

Brand NameDocan
Total Carbohydrate1 Year
Print headKonica 512/1024/1024I, Ricoh GEN5
ModelDOCAN FR3210
Material weight450KG
Print size3.2m Roller/ 3.2m x unlimited
Supply TypeManufacturer, Supplier, Retailer

Preferred Buyer From : India only

Product Overview

We offer secured online and offline payment processing methods. The transaction, done through online mode, is instantly forwarded to the payment system. We also accept bank account transfers, cash payments, etc. Our team of quality experts strictly checks the entire range against varied parameters to make sure that they adhere to global quality standards.

Technical Specifications

General Information
Model	DOCAN FR3210
Catagory	UV Hybrid Printer
Printing Size	3.2m x unlimited
Printing
Print Technology	drop-on-demand piezo electric inkjet
Printhead	KM-512MH-14PL/KM-1024MHB-14PL/Ricoh Gen5 7PL
Printhead Control	Printhead temperature and voltage are adjustable in software
Ink Type	UV curable Ink
Ink Reservoir	Refillable on the fly while printing/2000ml
Rip Software	Photo Print/ONYX/Caldera
Color Management	ICC based color, curves adjustment, density adjustment
File Format	Tiff, Jpeg, Pstscript, eps, pdf
Media Thickness	1-60mm
Printhead QTY	KM-512MH-14PL
	4-8pcs
Resolution	KM-512MH-14PL/KM-1024MHB-14PL
	720 x 720 dpi
	720 x 1080 dpi
	720 x 1440 dpi
Printing Speed	KM-1024MHB-14PL (two rows)
	4 pass 42 sqm per hour
	6 pass 28 sqm per hour
	8 pass 20 sqm per hour
Print Colors	4 colors (CMYK), 6 colors (Lc Lm CMYK), White/Varnish optional
Drying System	UV Lamp with three power levels
Medias
	Rigid materials: glass, acrylic, PVC foam board, KT board, Wood, WPC, Metal panels,ceramic tiles, MDF, etc. Flexible materials: Paper, advertising banners, wall paper, Mesh, self-adhesive vinyl
Outdoor Life of finished printing	3 years (use Docan ink)
Dimensions and Weight
Dimensions	5.65 x 2.89 x 1.81m
Weight	3950kg
Operation
Power Supply	50/60Hz 220V(10%)>30A
Operation Environment	20°C to 28°C
Humidity	40% to 60%
