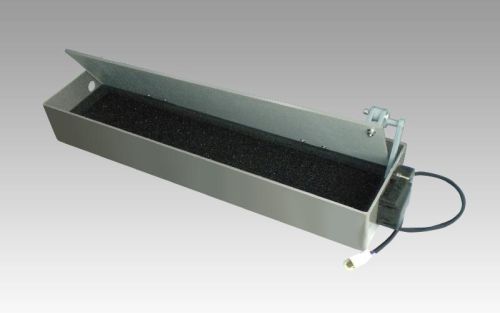

Fresh Air Damper

₹ 2,700 / Piece

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

XF-1 FRESH AIR DAMPER 1.Function: XF-1 fresh air device applies to control the ventilation door of the fresh air device in the bus AC system. Material: ABS, aluminum-plastic fan,3M filter,....

Company Information

Zhengzhou Newbase Auto Electronics Co.,Ltd

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1991

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

XF-1 FRESH AIR DAMPER
1.Function:
XF-1 fresh air device applies to control the ventilation door of the fresh air device in the bus AC system.
Material: ABS, aluminum-plastic fan,3M filter, preplaced nut, seal and reliable, turn smoothly and easy assemble.
Turn onoff the fresh air device of AC system by putting throughcutting off the control wire.
2.Application case:
YUTONG BUS,HENGTONG BUS
3.Accessories:
1. Assemble hole: plentiful selects, or customization
2. Connector: customization.
4.Wiring Diagram:
Technical data:
Code XF-1
Power supply DC24VDC12V
Power consumption 3W
Current Max.70mA
Electrical connection Max.1m X 0.5mm²
Direction of rotation CWCCW
Area of the damper 0.042m²
Torque 4kgf.cm
Running time 3.5±0.5rpm
Locked current Max.250mA
Noise level Max.43dB(A)
Ambient temperature -30°c—80°c
Storage temperature -40°c—85°c
Life Max.200,000 cycle
Dimensions 545x135x70(mm)
Weight 970g
Quality certification TS16949ISO9001
Advantages:
a. Mature&stable
b. Wiring customized
c. Competitive price
d. Make comfortable temperature&humidity
