Q345，16Mn，20 Mnsi Friction Bolts

Product Description

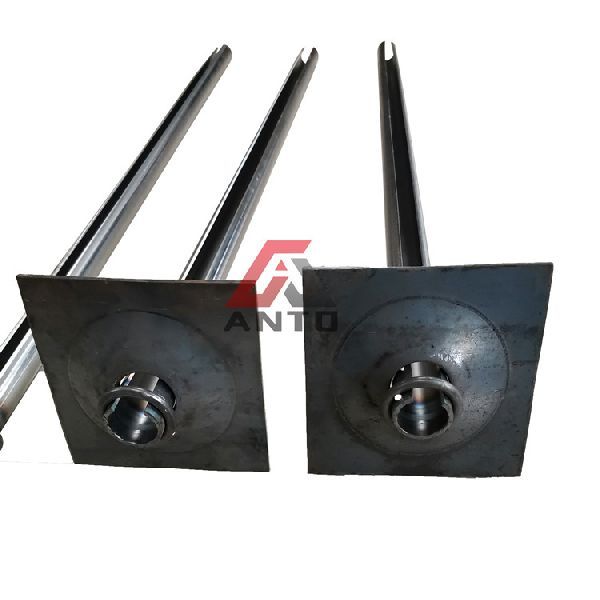

Split set bolt, also called split set stabilizer, is an indispensable advanced material for underground mining support. Split set bolt is a very specific support product, and it is an advanced material used for the support of the roof of the underground copper or gold mining and other projects.

Product Parameters

Item  No.
Diameter
Steel thickness
Min Yield Strength
Min
Breaking
Strength
Elongation

Anchoring
Load
Domed Plate Size
ATFB33
33mm
2.5mm
78KN
100KN
18%
4-7tons
150*150*4.0mm
ATFB39
39mm
2.5mm
88KN
115KN
18%
5-8tons
150*150*4.0mm
ATFB42
42mm
2.5mm
95KN
120KN
18%
5-8tons
150*150*4.5mm
ATFB47
47mm
3.0mm
125KN
160KN
18%
6-12tons
150*150*5.0mm



Working Principle

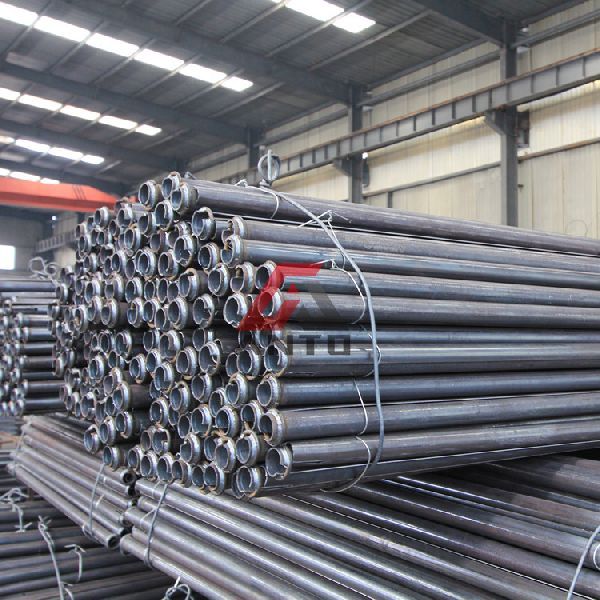

Split set bolt is a new type of anchor rod for full-length anchoring, which main part is a high-strength steel pipe with longitudinal slits. When installed in a borehole slightly smaller than the pipe diameter, The radial pressure is applied to the hole wall and the friction to prevent the sliding of the surrounding rock within the full length, plus the supporting force of the mining plate, So that the surrounding rock is subjected to forces in three directions to ensure the stability and safety of the surrounding rock. When the surrounding rock is significantly displaced, the anchor rod does not lose its supporting resistance, and it has better characteristics than the expansion shell rock bolt.

Product Features
1. The raw material is made of high-strength alloy steel strip.
2. The installation is the simple.
3. No anchoring agent is required.
4. The friction strength between the bolt and the rock is large.
5. It has high shear and tensile strength.

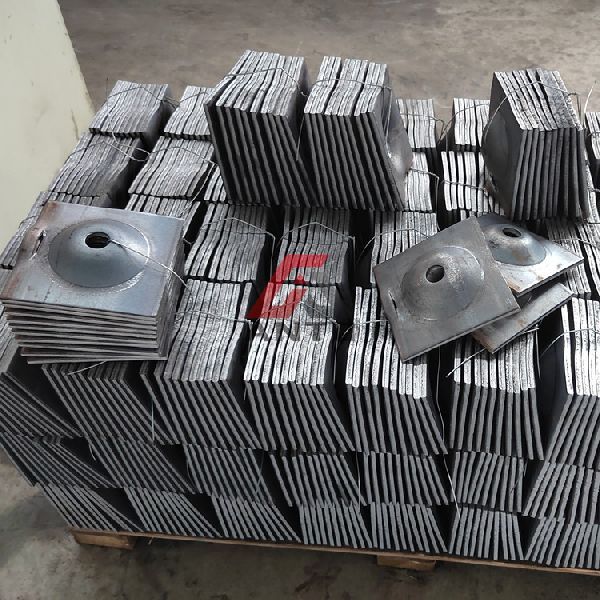

6. Equipped with a high-strength plate.

Advantages of Split set bolt
1.Split set bolt has simple operation and convenient use. It has anchorage in the underground anchor and shotcrete support.
2.It has strong strength, high tensile strength and strong expansion force, which makes the whole roof become one body.
