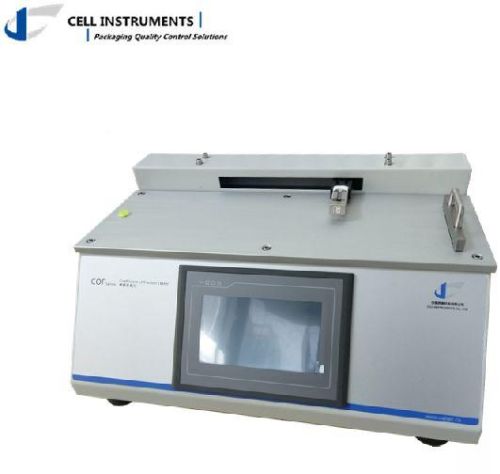

Automatic Friction Tester

We offer astm d1894 coefficient of friction tester. Astm d1894 coefficient of friction tester measures the static and kinetic cof of plastic films, sheets, rubber, paper and paper board, pp woven bags, fabrics, metal-plastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires. It follows astm d1894 and iso 8295 standard.
Coefficient of friction tester features
1. plc control and human machine interface
2. real time display of test data, results and curves
3. both the static and kinetic coefficient of friction can be measured
4. in accordance with multiple international standards
5. test results calculation, analysis and curve superposition
6. rs232 output and professional software
7. microprint of easy printing of test result
coefficient of friction tester technical specification
load cell 5n
accuracy ±0.02 n
stroke max 150mm
sled 200 g (customization for other weight)
test speed 100mmmin (iso), 150mmmin(astm)
power ac 220v 50hz ( can be changed to local requirement)
dimensions 400mm(l)*300mm(w)*180mm(h)
