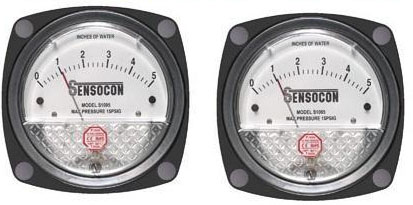

The Series S1000 Front Mount Differential Pressure Gauge makes panel mounting quick and easy. The S1000 is a diaphragm operated gauge for measuring positive, negative, or differential pressure. The S1000 was designed to allow quick installation saving time and money. This includes easy front mounting with 4 screws without any additional hardware required, and quick tubing connections with molded-in pressure fittings. The Series S1000 Front Mount Differential Pressure Gauge has a span adjustment on the back of the gauge for calibration adjustments. In addition to the time savings offered by the Series S1000 Differential Pressure Gauge, the gauge is based on the same rugged design as the S2000, which allows for years of trouble free operation.
Pressure Limits:
20” Hg to 15 PSI (-0.677 bar to 1.034 bar)
Media Compatibility:
Air and compatible gasses
Accuracy:
Duplicate high and low recessed, push on connections for 3/16” tubing – one pair side and one pair back
Weight:
1 lb 2 oz (510 g)
Accessories:
2 connection plugs, 4 mounting screws, 4 screw caps, 2 static pressure connectors, and 3 feet of vinyl tubing
Agency Approvals:
RoHS, CE
