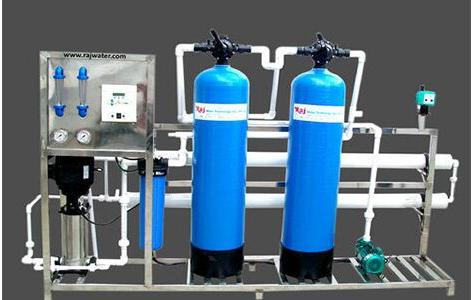

FRP Non ISI RO Plant

FRP RO Plant is Skid Mounted System and can be Installed at anywhere with water Inlet. This system consists of Raw water Pump Is Take Water From Water Tank And Give to Sand Filter And Carbon Filter, Pressure Sand Filter Is Removes Turbidity, Activated Carbon Filter Removes Smell & Color, Antiscalant Dosing Worked For The Reverse Osmosis System So With The help of that Membranes Not Chock Up., Micron Cartage Filter Is Used For The Remove Heavy Particles Which Comes From The Filters., HP pump is Provide Pressure To Membranes and R . O . Membranes is remove Heavy TDS. Hardness, Alkalinity, Iron, Etc. with Pressure Vessels and sophisticated Instruments with Programmed Control Logic for its full proof Operation. System Include the Electrical and Instrument Control panel PLC Base on skid.

•  RO Capacity (LPH) 0-200, 200-500, 500-1000, 1000-2000, 2000-300
•  Plant Application Industrial RO Plant, Institutional RO Plant
•  Plant Accessories Ozonator, Chlorinator, Ultra Filtration Plant
•  Automatic Grade Automatic
•  Chiller Cooling Capacity (Tons) 0.5 ton, 1 ton, 1.5 ton, 2 ton, 5 Ton
•  Number of Membranes in RO 1, 2, 3, 4, 5
•  Number of Filtration Passes 4, 5, >5
•  Max Water Recovery Rate 50-55 %
