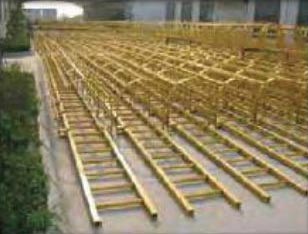

FRP Pultruded Ladder

Designed for easy installation and fabrication, our FRP Pultruded Ladder meets or exceeds requirements with durable construction and corrosion-resistant materials. We are one of the leading Manufacturers, Suppliers and Exporters of FRP Pultruded Ladder. Our FRP Pultruded Ladder is light weight that requires low maintenance. We offer FRP Pultruded Ladder at an affordable price.
Features

• Light weight
• Corrosion resistant
• Requires very low maintenance
• Affordable
• Manufactured with the combination of fiberglass ravings and isophthalic polyester or vinyl ester resins
• Offers rigidity and safety
• Durable
• Meets ladder safety standards and designs
• Easy to install
• Easy fabrication
• Support provided along with ladder

Design Standards
ACL meets the following min requirement of code min design live load shall be a single concentrated load of 300kgs. Distance between rungs shall not exceed 300mm. Min. Distance between side rails shall be min 400mm. The safety cage is required on ladders of more than 6m to a maximum unbroken length of 9m. The safety cage to extend minimum of 1050mm above top of lading. The safety cage to begin minimum 2100mm to maximum 2400mm above base of ladder(f1oor) The safety cage shall not extend less than 675mm or more than 700mm from the centerline of the rungs of the ladder. Cage shall not be less than 675mm in width. The distance between hoop cages shall be max 850mm. The wall mounting brackets shall be spaces at max.1800mm. Vertical bars shall be located at a maximum spacing of 40 degrees around circumference of the cage, this will give a maximum spacing of approximately 238mm center to center. In certain location, where safety is a major concern, our safety cage shall have a fiberglass net manufactured by pultrusion process instead of vertical bars, average thickness 3mm fixed on the FRP cage hoops, to provide extra safety for workers.
