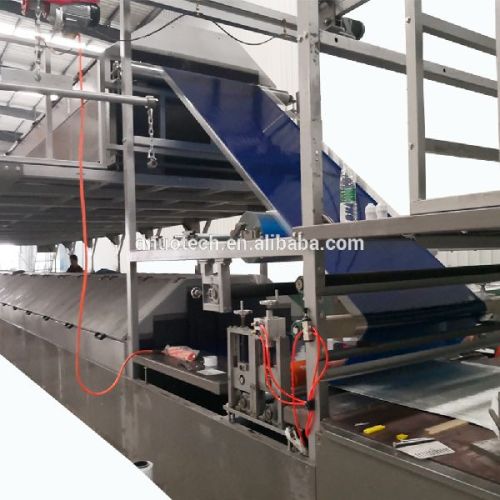

FRP Sheet Making Machine With Gel Coat Function

This production line can produce lighting sheet,color sheet,common flat sheet and gel coat sheet.

Operation Staff:4-7 person                            Production speed:2-12m/min

Sheet width :Maximum effective width of flat sheet is 1500mm

Wave height:maximun 130mm                     Sheet thickness:0.4-4mm

Gel coat thickness:0.2-0.4mm

 Machine size(uper gel coat):61m(L)×4(W)×5m(H)

Machine size(lower gel coat):59m,64m(L)×1.85(W)×3.5m(H)

Power requirement:120kw                            Power consumption:55kw/h

Machine characteristics:
1,    Apply high precision import forging doctor blade, smaller error, Thin & even gel coat coating.
2,    Gel coat curing area apply clip flatten roller designed by Dnuo technology company, easy operation & good tensioning effect.
3    The impregnation table can control temperature independently & accurately. It can adapt to the outside temperature fast, impregnation fast and improve the production speed effectively.
