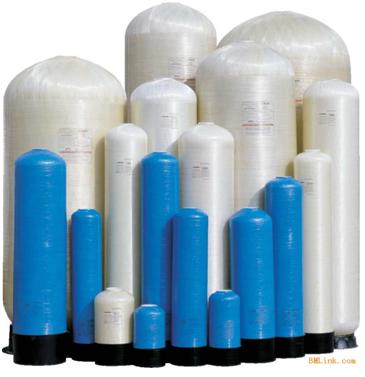

FRP Vessels

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features and Advantages... Completely rust and corrosion free. Excellent resistance to impact and abrasion. Light weight, easy for transportation and installation. Smooth, fiber-free inner surface with wide chemical resistance. Operation Requirement... Operating pressure ≤0.7Mpa Operating temperature ≤49°C Vacuum ≤127 mmHg (5" Hg)

View More Details

Send Enquiry

Company Information

Seven Seas Solutions

Vatva, Ahmedabad, Gujarat

View Number

Member Since 11 Years
Nature of Business Retailer
Year of Establishment 2013

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Size (inch)	Size (mm)	Opening (inch)		Capacity		Operating Pressure		Filtration Velocity m3/hr
Size (inch)	Size (mm)	Top	Bottom	Gallons	Liters	MPa	Bar	Filtration Velocity m3/hr
10 X 54	200 X 1350	2.5" NPSM	-	16.4	62.0	0.7	7.0	0.6~1.5
12 X 52	300 X 1300	2.5" NPSM	-	22.2	84.0	0.7	7.0	1.6~2.2
13 X 54	325 X 1350	2.5" NPSM	-	27.5	104.0	0.7	7.0	2.0~2.5
14 X 65	350 X 1625	4" NPSM	-	40.6	154.0	0.7	7.0	2.5~3.0
16 X 65	400 X 1625	4" NPSM	-	49.0	185.0	0.7	7.0	3.2~4.5
18 X 65	450 X 1625	4" NPSM	4" NPSM	66.7	251.8	0.7	7.0	3.5~4.8
21 x 62	525 X 1550	4" NPSM	4" NPSM	88.0	333.0	0.7	7.0	4.0~5.5
24 X 72	600 X 1800	4" NPSM	4" NPSM	126.8	480.0	0.7	7.0	6.2~8.2
30 X 72	750 X 1800	4" NPSM	4" NPSM	195.5	740.0	0.7	7.0	7.2~12.2
36 X 72	900 X 1800	4" NPSM	4" NPSM	283.0	1,071.0	0.7	7.0	13.2~16.2
40 X 72	1250 X 1800	6" FLG	6" FLG	338.7	1,282.0	0.7	7.0	16.2~22.2
48 X 72	1200 X 1800	6" FLG	6" FLG	477.7	1,808.0	0.7	7.0	22~27
48 X 96	1200 X 2400	6" FLG	6" FLG	657.1	2,487.0	0.7	7.0	30~40
56 X 96	1400 X 2400	6" FLG	6" FLG	844.1	3,195.0	0.7	7.0	36~45
60 X 96	1500 X 2400	6" FLG	6" FLG	958.0	3,626.0	0.7	7.0	40~55
65 X 110	1625 X 2750	6" FLG	6" FLG	1,290.1	4,883.0	0.7	7.0	60~70
72 X 110	1800 X 2750	6" FLG	6" FLG	1,681.4	6,364.0	0.7	7.0	70~80
80 X 126	2000 X 3150	6" FLG	6" FLG	2,404.0	10,773.0	0.7	7.0	80~90
89 X 126	2225 X 3150	6" FLG	6" FLG	2,846.2	10,773.0	0.7	7.0	90~100
