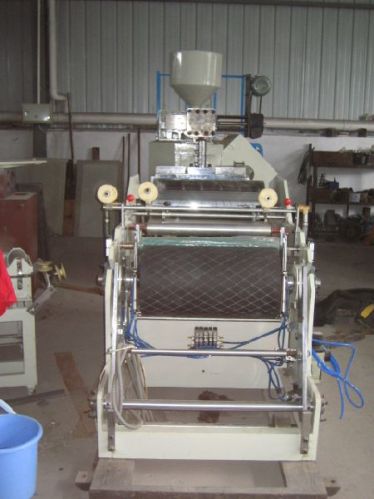

FT-500 Cling Film Making Machine

Cling film food wrapping machine adopts raw material of LLDPE (Liner low density polyethylene). The film is self-sticky. The machine is divided into three parts, the extruding part, the traction part and the winding part. The screw stem and cylinder are very good quality, made of 38CrMoAl after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.  Main technical parameters   Model FT-500 single-layer FT-600 single-layer FT-800 single-layer Diameter of Screw Stem φ55 mm φ55 mm φ65 mm LD Ratio of Screw 28:1 28:1 28:1 Material of Scerw & Barrel 38 CrMoALA 38 CrMoALA 38 CrMoALA Rationl Speed of Screw Stem 10-120 rpm 10-120 rpm 10-120 rpm Width of T-die 650 mm 750 mm 950 mm Heating Way Casting-aluminum heating device Casting-aluminum heating device Casting-aluminum heating device Width of Traction Roller 650 mm 750 mm 950 mm Folding Width of Products 200-500 mm 200-600 mm 200-800 mm Thickness 0.015-0.05 mm 0.015-0.05 mm 0.015-0.05 mm Main Motor 15 kw 15 kw 18.5 kw Heating Power 18 kw 18 kw 22 kw Tractiong Motor 2.2 kw 2.2 kw 3 kw Max. Output(kgh) 40 50 90 Machine Weight 2.2T 2.2T 3.5T Overall Dimensions (L*W*H) 4500 mm*2100 mm*2550 mm 4600 mm*2200 mm*2600 mm 7000 mm*4000 mm*3000 mm
