Kdm Global Aluminum Ftir Toxicity Cone Calorimeter, Color : Brown

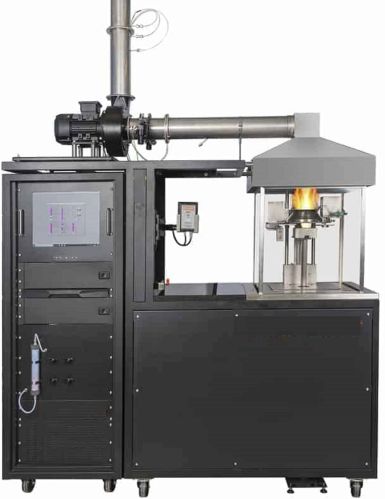

Cone Calorimeter with FTIR Toxicity & Smoke Density

Standards: ISO 5660, ISO 5659-2, NCD 1409 | Manufacturer: KDM Global

Product Overview:

The Cone Calorimeter with FTIR Toxicity & Smoke Density Analysis, developed by KDM Global, is a comprehensive fire testing system designed for evaluating the heat release rate (HRR), smoke generation, and toxic gas emissions from materials under controlled combustion. This system integrates multiple international fire test standards including ISO 5660, ISO 5659-2, and NCD 1409, making it ideal for railway, construction, electrical, and polymer testing.

It is engineered to meet the advanced requirements of EN 45545-2, ensuring compliance with European railway fire safety regulations, and is widely used by certification bodies, R&D labs, and material manufacturers.

Standards Compliance:

• ISO 5660-1 – Heat Release Rate using Cone Calorimetry

• ISO 5659-2 – Smoke Density under Controlled Ventilation

• NCD 1409 – Toxic Gas Analysis (using FTIR) for Railway Applications

• EN 45545-2 – Fire Safety for Railway Components (HL1 to HL3)

Key Features:

• Advanced cone calorimeter with precise radiant heat flux control (0–100 kW/m²)

• Integrated FTIR Gas Analyzer for continuous monitoring of CO, CO₂, HCN, NOx, and more

• Smoke density chamber compliant with ISO 5659-2 for optical density measurement

• Mass loss measurement, exhaust flow measurement, and O₂ consumption calorimetry

• Real-time data acquisition and analysis software with graphical reporting

• Modular design for integration with additional fire testing accessories

• Designed for flammability, toxicity, and smoke release evaluation in one setup

Applications:

• Railway Interiors – Seats, flooring, wall panels (EN 45545-2)

• Building Materials – Insulation, foams, wall linings

• Electrical & Electronics – Cables, wire insulation, plastic enclosures

• Automotive & Aerospace – Interior polymers and textiles

• Research & Certification Laboratories – Performance evaluation and compliance

Technical Advantages:

• Combines three major tests (HRR, Smoke, Toxicity) in one compact system

• Reduces testing time and equipment footprint for labs

• Automated calibration and self-checking diagnostic features

• Precise sample holder and load cell system for repeatable testing

• Includes standard safety interlocks and fire suppression systems

Packaging & Delivery:

• Delivery Time: 6–8 weeks (standard configuration)

• Export-quality packaging with shock protection

• On-site commissioning and operator training available

• Annual Maintenance Contracts (AMC) and calibration services offered

About KDM Global:

KDM Global is a leading Indian manufacturer of fire testing equipment, offering complete solutions for flammability, smoke, toxicity, and fire resistance testing. With a client base across testing labs, railways, government bodies, and manufacturers, we are committed to quality, compliance, and innovation.
