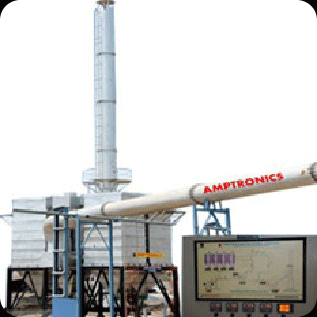

Fuel Extraction Systems

We are engaged in offering Bag House in variety of sizes and type to suit site constraint. Depending on size, unit is shipped fully assembled or in modular PID/ PLC based control Panel form for quick and easy field erection and low field labor cost.

The operation principle is mentioned below:

• An internal baffle distributes the dirty air within the housing. Dust laden air slows down as it enters the collector
• Coarser dust particles drop into the hopper & hopper disposes through Rotary Air Lock
• The air dirty passes through the bags, dust is captured and collected on the bag exterior
• Filtered clean air flows to the clean air chamber and exhausts through outlet.
• Periodic compressed air pulsing removes accumulated dust from the bags with cleaning frequency and duration adjusted by solid-state timers or PLC
• Dust laden air enters the Dust collector through the hopper or casing depending upon application

Advantage:

• Easy installation
• Quick Bag replacement
• Reduced energy cost
• Adjustable Cleaning mechanism based on system pressure drop maintains low-pressure drop, with minimum compressed air consumption
• No internal moving parts
• Maintenance is reduced
• May not require to “Off” the system if by-pass line provided. Dust collector shutdown is minimized.
• Increased Bag life
• Low Maintenance Cost
• Optimizes bag cleaning mechanism proper bag cages and reduced compressed air usage enhances bag life

Features:

• Removable top access doors with drain line
• Top bag removal, large space for clean air chamber
• Durable construction of housing in PANEL form
• Flanged air inlet, air outlet and dust discharge
• Heavy duty, smooth wire cages to support bags
• Girth channel for continuous support
• Bag and finish selection to suit application

Options:

• Standard Support legs with necessary bracing
• Wide range of material of construction
• High efficiency filter bags, need felt /Micro porous /membrane /non-woven / acrylic /anti-static
• Top railing with ladder access and tower lamp
• Electrical components like PLC, Stone master Lighting arrestor.
