Fuel Injection Pump Test Bench

Offering Fuel Injection Pump Test Bench.

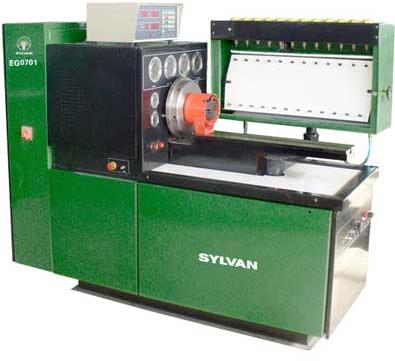

EG0701 Fuel Injection Pump Test Bench(Basic Model)
Introduction
Adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.
Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotated distributor injection pumps EPVA,EPVM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.
Features
1. Changing frequency changing rotational speed
2. Low fall of rotational speed and high output torque
3. Display the oil quantity at Screen, high measurement precision;
4. The functions of overvoltage overload and short circuit protection;
5. Ten classes Rotation speeds presetting;
6. Constant temperature controlled;
7. Ultra low noise;
8. Operating position: arbitrary side of the two work sides of the test stand;
9. Rotation speed, count, temperature, air pressure, advance angle are measured and controlled by computers in real time, then displayed on (17 LCD touch screen).
10. Built-in air resource;
11. All data can be made into reports and printed;
12. Automatically generating and displaying speed characteristics curve; (tooth bar stroke function on request)
13. The data of the pumps can be saved, modified and obtained pump database;
14. It is very easy to find the data of the pumps in pumps database;
Main Function
1. Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of
