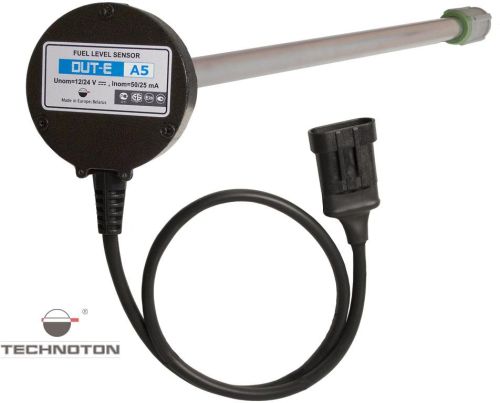

Fuel Level Sensor Dut-e A5

We are offering fuel level sensor dut-e is designed for precision fuel level measurement in all kinds of vehicle tanks, also in tanks of fixed installations.
Dut-e can be used as a part of a fuel monitoring system or to substitute the standard fuel meter of a vehicle.
Dut-e as a part of telematics system is used:
• to obtain reliable information about current fuel volume in vehicle tank;
• to define the vehicle fueling volume;
• to detect fuel theft from the tank;
• to carry out the remote tank monitoring;
• to determine fuel consumption.
Features
• configuratable thermal correction for automatic compensation based on ambient temperature*;
• digital self-diagnostics to control data reliability*;
• conformity to compulsory automobile standards of the european union, russia, and belarus;
• no recalibration required for up to 30% length reduction of the sensor (dut-e a5, dut-e a10, dut-e i);
• length increase with additional sections of dut-e – up to 6000 mm*;
• ergonomic bayonet-type fastening to save mounting time;
• sealing openings to prevent tampering;
• all the necessary mounting items and cords in delivery set;
* – dut-e af, dut-e 232, dut-e 485, dut-e can.
Specification
operating principle capacitive
measurement inaccuracy, %, not more than 0.2 for stationary fuel tanks and stationary vehicles;
1 for moving vehicles
supply voltage, v 10-50
overvoltage protection, v up to 100
operation temperature, °c from -40 to +85
current consumption, ma ≤25 (24 v)
≤50 (12 v)
output signal dut-e 232: digital, dut-e com protocol
length, mm dut-e 232 - 350, 700, 1000
warranty 5 years from the date of manufacturing
