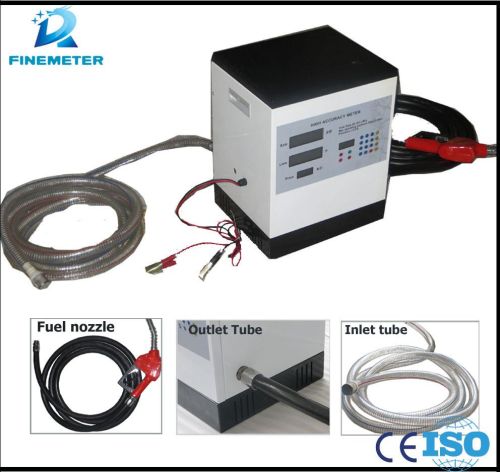

Fueling Station Diesel Mini Electronic Fuel Dispenser

We are offering finemeter brand fueling station diesel mini electronic fuel dispenser,mini fuel filling dispenser owns many patents, which is developed by anhui ruiling metering manufacturing co.,ltd's r&d department.it has the advantages of compact struction, easy-use, easy-carry, high accuracy, widely used, simple maintenance etc, it will be your right-hand assistant
specification:
item no.
bjj-20-a6c
voltage
1224v
accuracy grade
0.3%
sizeweight
38x32x49.5cm 22.5kgs
use range
diesel,kerosene
pump position
inside the fuel dispenser
parameter:
model no.: bjj-20-a6c model no.: bjj-20-a6c
applicative range: diesel,kerosene flow range: 20-60lmin
voltage: 12v,24v suctionlift: 10m4m
rotating speed: 2000rmin power: 0.5kw
inhalation caliber: 25mm discharge caliber: 20mm
accuracy: ±0.3% max.pressure: 4 bar
single gauge no.: 0-9999.9l accumulated gauge no.: 0-99999l
unit price setup: 0.00-$99.99 accumulated price range: 0-$99999
min.metering unit: 5l temprature range: -20°c-50°c
total weight: 22.5kg size: 38x32x49.5cm
product update:
for the reason that our first generation mechanical fuel dispenser has been copied, our company updated the products series with 5 updated points under the price not increased-
our design is much more compact, layout is more reasonable,increasing the operation efficiency.
Adapting laser whole shaped technology,enlarging instruments' fastness and stability.
Choosing new type electromagnetic switch,greatly enlarging using safety and stability and prolong the using life.
More attracting appearence.
Increasing the thickness of the shell.
