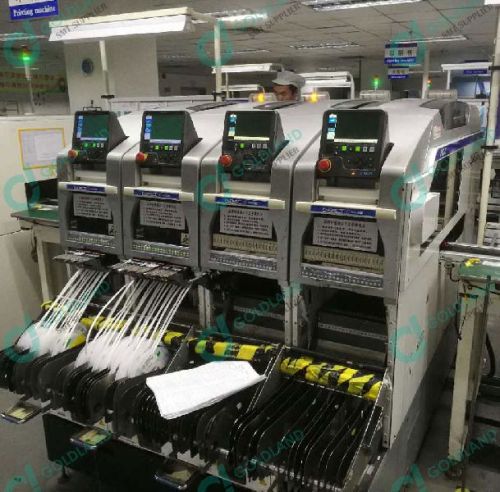

FUJI NXT M3II SMT Machine

fuji nxt m3ii smt machine in stock for sale

modelm3iim6ii

pcb sizedouble conveyor type : 48mm x 48mm to 534mm x 510 mm

single conveyor type : 48mm x 48mm to 534mm x 610 mm

feeder capacityup to 20 types (8 mm tape)up to 45 types (8 mm tape)

pcb load timedouble conveyor: continous 0 sec, single conveyor: 2.5 sec (using only m3ll module single conveyor: 3.4sec (using only m6ll module)

placing accuracy (fiducial mark based referencing)chips:± 0.05 mm (3 sigma) four side leaded: 0.03 mm (3 sigma)

throughputh12hs : 22,500 cph

h08 : 10,500 cph

h04 :6,500 cph

h02 :5,600 cph

h01 : 4,200 cph

h12hs : 22,500 cph

h08 : 10,500 cph

h04 :6,500 cph

h02 :5,600 cph

h01 : 4,200 cph

applicable componentsh12hs : 0402 (01005) to 7.5 x 7.5mm max height : 3.0mm

h08 : 0402 (01005) to 12 x12 mm max height : 6.5 mm

h04 : 1608 (0603) to 38 x 38 mm max height : 9.5 mm

h02/h01 : 1608 (0603) to 74 x 74mm (32mm x 180mm) max height : 25.4mm

module width320mm645mm

machine dimensions4mll base: l:1390mm x w: 1934mm x h:1474mm2mll base: l: 740 mm x w: 1934mm x h: 1474mm
