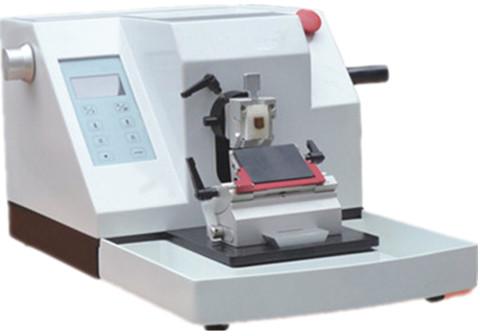

Full Automated Microtome, Brand Name : roundfin

We are offering full automated microtome rd-368 ,stable performance, easy to operate.
Emergency stop electrical mechanical design
features:
v advanced driving systems, fuctions of section,trimming,fast forward,backward etc
v lcd screen shows trimming thickness range,numbers of section and trimming
v section and trimming mode can be finished by controlling systems
v handwheel can be locked at any position to assure user's safety
v large waste tray,easy to unload
v universal cassette clamp and standard specimen clamp;emergency stop systems
v manual or fully automated section mode
v fully-automated section has two modes: single and continuous;speed of section can be adusted
v section and trimming mode can be exchanged easily
v emergency stop system,overload protection fuction , sleep mode protection
v emergency brake system
technical parameters:
v section thickness : 0.5-100μm
0.5 μm increment from 0.5 to 2 μm
1 μm increments from 2 to 10μm
2μm increments from 10 to 20μm
5μm increments from 20 to 100μm
v trimming thickness : 1-600μm
1 μm increments from 1 to 10μm
2 μm increments from 10 to 20μm
10 μm increments from 20 to 100μm
50 μm increments from 100 to 600μm
v horizontal stroke 28mm
v vertical stroke 60mm
v retraction 20µm
v specimen clamp can be 360°turned
v minimum setting thickness of slice 0.5μm
v maximum specimen size φ 50mm
v precision error ±5%
v voltage ac220v 50hz 110v 60hz
v power 150va
v dimension 580×360×310mm
v weight 35kg.
