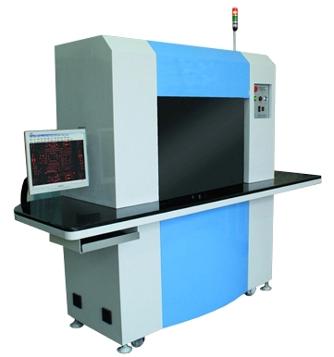

Full Automatic Circuit Board Testing Machine

We are offering full automatic circuit board testing machine suny-zict5000.
1. usage: testing whole board open, short circuit and other electrical properties of pcb;
2. fly needle number: 2 + 2 mobile probe;
3. the test pressure: 5 g-30 g soft frame can be adjusted;
4. testing speed: 1200 points/min;
5. testing area: 620 mm x 510 mm double sided plate;
6. minimum welding plate size: 5mil;
7. minimum welding plate center distance: 5mil;
8. testing voltage: 25 v-250 v classification can be adjusted;
9. testing current: 30~200ma;
10. open circuit critical resistance: 3ω~80ω;
11. insulation resistance critical value: 5mω-30mω;
12. capacitance testing range: 0.1pf-100mf.
