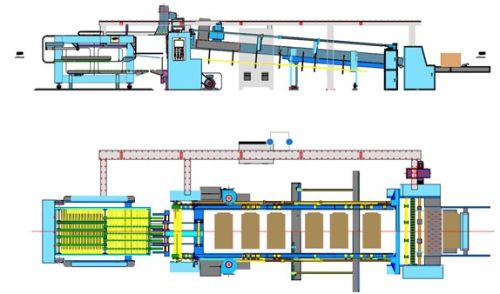

Full Automatic Computer Control Down Folder Gluer

Our rc box maker is designed by our senior technical engineer mr. Mohammad baliha. He has more than 12years experience and high-technology in folder gluer industry. The machine collects all the advantages of world’s folder gluer, mainly insert many advanced technology of langston usa, running speed can be 300mmin with good result carton. Machine use full automatic computer control, high quality belt, reasonable design, the glue finishing of carton is excellent.
the main application is on food and beverage, laminating boxes, industrial products, for gluing process of packing cartons. Replace manual folder gluing and semiautomatic folder gluer, with low cost, high efficient, stable quality. Economize on manpower in quantity. It is the first choice for middle and big size carton factories.
Our rc box maker can be designed to connect with your exist flexo printing slotting machine to be on-line flexo folder gluer.
main technological parameters
model
item rc2000 rc2400 rc2400l rc2800
max. Sheet size 2000*900mm 2400*900mm 2400*1200mm 2800*1200mm
min. Sheet size 700*270mm 700*270mm 800*360mm 800*360mm
applicable paper 3,5,7-layer corrugated paperboard a, b, c, e, f flute
max. Belt speed 320mmin 320mmin 320mmin 320mmin
design speed 300pcsmin 300pcsmin 300pcsmin 300pcsmin
noise ~85db(on the level of 1.5 meters high at the operator side)
glue unit glue gun gluing wheel
total power 43.5kw 43.5kw 45.5kw 48.5kw
air source 0.6~1.0mpa 0.6~1.0mpa 0.6~1.0mpa 0.6~1.0mpa
machine size 14*4.1*2.45m 14*4.5*2.45m 14.5*4.5*2.45m 14.5*4.9*2.45m
power supply 380v,50hz, 3 phase 4 line.
Due to the technological upgrading, royal reserves the right to modify the relevant parameters.
