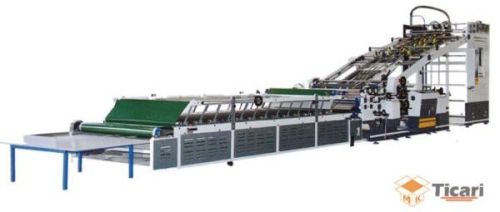

FULL AUTOMATIC FLUTE LAMINATOR MACHINE

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

High speed full automatic flute laminator machine which give you high quality with maximum speed. This machine make your lamination process so easy and fast. It make you your production full....

View More Details

Send Enquiry

Company Information

M.K. TICARI Pvt Ltd.

Bahalgarh, Sonipat, Haryana

View Number

Member Since 10 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

High speed full automatic flute laminator machine which give you high quality with maximum speed. This machine make your lamination process so easy and fast. It make you your production full automatic because its feeding process is full automatic.

Function and Characteristics

Automatic feeding top as bottom paper, front pushing face paper, It has easy shortcut for feeding paper, lower work intensity which save your man power cost.
Front orientation paper never leading, suit jointing of paperboard to paperboard and paperboard to A,B,C,D,E style corrugating cardboard.
Jointing of bottom paper to face paper automatically due to feeding system from top and bottom.
Geeding glue system are automatic control by liguid relay, thickness of sub can adjust equality glue, which reduce glue cost..
Electric machine adopt nonpolar shift, elecctromagetism clutch adopt without point relay, journey position adopt photoelectricity switch detect, electron automatic count and empty sheet photoelectricity automatic control.
Auto stop on error or paper faliure hence it also control your paper wastage.
Conveyor system with auto pressor system is also a good feature which increase your product quality.

Technical Sepecification

Model	1300	1450	1600
Maximum size	1300 x 1100 mm	1450 x 1100 mm	1600 x 1400 mm
Minimum size	350 x 350 mm	350 x 350 mm	450 x 450 mm
Laminate Precision	+- 1.5mm	+-1.5 mm	+-1.5 mm
Speed	6000 Sheet/hour	6000 Sheet/hour	6000 Sheet/hour
Total Power	12 Kw	12 Kw	13 Kw
Length	12.5 m	12.5 m	12.5 m
Total weight	6.8T	7.2T	8.0T
