Full Automatic Integrate CZ Purlin Roll Forming Machine

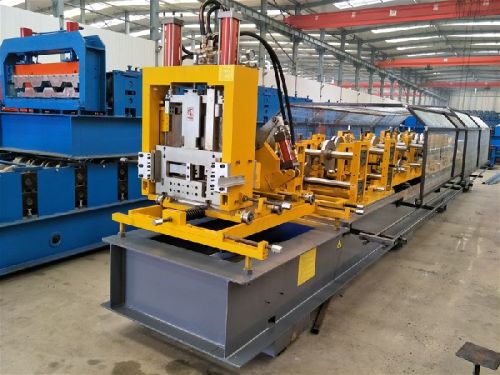

Full Automatic Integrate C Z  Purlin Roll Forming Machine The full automatic integrate CZ purlin roll forming machine includes the decoiler,main forming machine ,PLC control system , hydraulic pump , and output table .It increases the stability of steel structure ,light weight so it is usually used to support the overall frame such as building , green house ,airport station and train station ect . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand A. full automatic B . lower cost  C. high efficiency D. reliable working  E. low energy consumption You can check our machine over all. Not only beautiful in the surface but also good quality. Technical parameters: Material speciafication : colored steel sheet , galvanized steel sheet Width of raw material : 175-465mm Thickness of coil sheet :1 - 2 mm Forming speed : 10-15 meter min Diameter of shaft : 90 mm Hydraulic station power : 4 kw Main motor power :4 kw Material of cutting : Gr12 Voltage : at buyers requirement Controlling system : PLC Dimension of machine :9500*1550*1910mm In order to help you know our machine much better. The following is the detailed pictures of the machine. Hydraulic cutting system : fully automatic .  Material of blades: Cr12, quenching treatment. Forming rollers Specification: 45# steel, CNC Lathes, heat treated 45# steel, roller surfaces polishing, hard plating.
