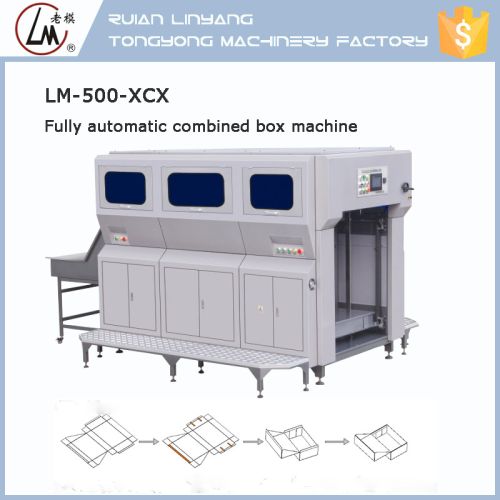

Full Automatic Shoe Box Making Machine

Upper suction auto paper feeder,more paper stack in one time,reducing the time to stack paper.
Japanese kisuke gel-spraying system can spray gel water and dot without stop,which can reduce the production cost.
A large powered step motor,resulting higher transmission precision and stability
a large-powered suction system,resulting higher transmission precidion and stability
intermittent return paper feeder and the mode that the paperboards are put on the worktable and then glued through a gel injector,lower energy consumption and resulting more accuracy in gluing.
With a multi air-cylinders hydraulic transmission system.it can form in one tim.it can simplify the production and make it easy to adjust with the coordination of the folding with the air cylinders
it has a larger range of adjustment.it can form in one time.it can simplify the production and make it easy to adjust a multifunctional one,more humanitarian.
It is a perfect combination of plc programmable controller,man-machine touch screen displayer and photoelectric cells.it canautomatically feed paper,glue the paper and form the paper boxes in one time.it is highly automation
auto malfunction detector,the troubles are vividly displayed on the screen,so they are easily remedied.
Fully-closed design,more safe
smaller coverage of land,sound stability
technical variables:
min cardboard size of a 450mm
max cardboard size of a 800mm
min cardboard size of b 450mm
max cardboard size of b 1020mm
min carton size of w 120mm
max carton size of w 350mm
min carton size of l 200mm
max carton size of l 500mm
min carton size of h 80mm
max carton size of h 120mm
min carton size of k 30mm
max carton size of k 120mm
min thickness of cardboard 1.5mm
max thickness of cardboard 3mm
heater power 4.4kw
motor power 7.07kw
air pressure 0.7mpa
working speed 0-13pcsmin
dimension 3750*2780*2120mm
weight 1800kg
