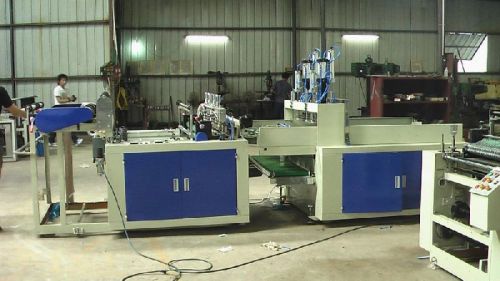

Full Automatic T-shirt Bag Making Machine

KYHQ-450*2 Full automatic T-shirt bag making machine adopts PLC touch screen, controlled by computer to display the feeding, sealing, cutting, punching handles and transporting in one process. It is high degree of automation of T-shirt bag making. The raw material is HDPE, LDPE roll film. The machine can be high speed equipped with servo motor, and to be medium speed with torque motor. There is photocell equipped on the machine to monitor the printing mark to make the bags accurate in length. The punching mold can be customized, different shape and different size is available accordingly. Auto loader of material is optional.  Model KYHQ-400*2 KYHQ-450*2 Max bag width 320mm*2 400mm*2 Max bag length 600mm 600mm Bag thickness 0.015-0.035mm 0.015-0.035mm Producing speed 140-180pcmin*2 140-180pcsmin*2 Air compressor 5kgm2 5kgm2 Total power 7kw 9kw Machine weight 1400kg 1600kg Dimension 6000*1400*1600mm 6000*1600*1700mm
