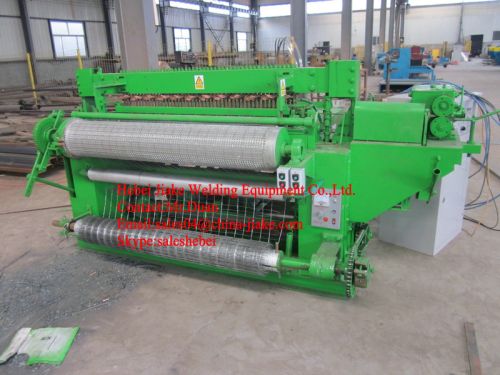

Full Automatic Welded Wire Mesh Machine

We are offering Welded Wire Mesh Machine. Function features
1.
Wire diameter 0.5-1.2mm
aperture of the mesh 12.7*12.7,25.4*25.4mm
width 1219.2mm
length 100m
transformer 60KVA*4
motor 4.0KW
speed 80-100timesmin
voltage 380v 50hz
2.
Wire diameter 1.2-1.4mm
aperture of the mesh 25.4*25.450.8*50.8mm
width 1219.2,1524mm
length 100m
transformer 75KVA*5
motor 5.5KW
speed 80-100timesmin
voltage 380v 50hz
3.
Wire diameter 1.4-2.7mm
aperture of the mesh 25.4*25.4,50.8*50.8mm
width 1219.2,50.8*50.8mm
length 100m
transformer 85KVA*5
motor 5.5KW
speed 80-100timesmin
voltage 380v 50hz
4.
Wire diameter 0.7-2.0mm
aperture of the mesh 12.7*12.7,25.4*25.4,50.8*50.8
width 1219.2,1525mm
length 100m
transformer 85KVA*7
motor 5.5KW
speed 80-100timesmin
voltage 380v 50hz
5.
Wire diameter 0.8-2.5mm
apertue of the mesh 12.7*12.7,25.4*25.4,50.8*50.8
width of the mesh 1219.2,1524,2006.6mm
length 100m
transformer 90KVA*5
motor 5.5KW
speed 80-100timesmin
voltage 380v 50hz
6.
Wire diameter 0.55-1.0mm
aperture of the mesh 12.7*12.7mm
width 1219.0mm
length 100m
transformer 50KVA*4
motor 4.0KW
speed 80-100timesmin
voltage 380v 50hz
7.
Wire diameter 1.0-1.6mm
aperture of the mesh 12.7*12.7,25.4*25.4mm
width 1219.2,1524mm
length 100m
transformer 85KVA*4
motor 5.5KW
speed 80-100timesmin
voltage 380v 50hz
