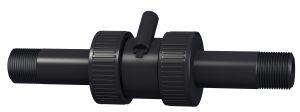

Full Bore Sensor

With the help of our rich industry experience, we bring forth and exclusive quality flow sensor full bore. Designed and manufactured by our skilled professionals using quality tested raw material and high-end technology as per the set industry norms. It used for sensing the prevailing conditions like earth fault, over current flow and other related conditions. Clients can avail this sensor in various customized options in order to fulfill the diverse needs and requirements of the clients'.
Features:
inexpensive and accurate
all plastic wetted parts
each fitting individually calibrated and marked with k factor
ceramic ball bearing for superior low flow performance
high level (5 vdc) signal can be sets up to 100ft. Without transmitter
for best results it is recommended to provide a straight run of 10 and 5d on the upstream and downstream respectively
available ranges:
ranges
6nb(14”)
25 nb (1")
50 nb(2")
flow range min.
0.05 m3hr.
0.25 m3hr.
1.0 m3hr.
Flow range max.
0.50 m3hr.
8.0 m3hr.
30 m3hr.
End connections
bspm
bspm
bspm
face to face (l) dim.
100
205 mm
260 mm respectively.
Technical specifications -
type - full bore turbine
fluid - water
s.g.of medium - 1
housing - gf nylon
impeller - poly propelene
bearing - ceramic
pin shaft - carbide ceramic
sensing element - hall effect i.c.
Accuracy - ± 2% of full scale
maximum temp. - 50°c
maximum pressure - 5.0 kgsq.cm
pressure drop - 0.3 kgsq.cm at max.flow
cable length (std.) - 3mtr.shielded
