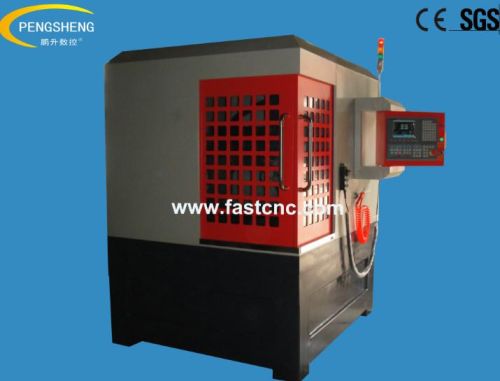

Full Enclosure Metal Mould CNC Router

We are offering Full Enclosure Metal Mould Cnc Router.
Feature: 1. Whole lathe bed is cast iron,full enclosure is dust proof. 2. The Spindle equipment is the first brand of the world, 1.53.0KW China domestic made water cooling spindle. 3. Three axes adopt imported ball screw,stable working,high precision and long life time. 4. X axis is dustproof.It makes sure the steady working performance of the machine for long-term using. 5. Well compatibility:CADCAM designing software e.g. Type3ArtcamCastmateWentai etc. 6. Has the function of forecasting process time. 7.High precision,the curving and linear speeds are consistent.Adopting excellent parts makes the fault rate to be the lowest one.
Technical Parameter:
Model PC-3030M PC-3040M PC-5060M PC-6060M
X.Y working area（mm） 300*300 300*400 500*600 600*600
Z working area 60mm 260mm
Resolution 0.01mm
X,Y,Z structure Taiwan ball screw
Max speed 9mmin
Spindle power 1.5KW3.0KW
Spindle rotating speed 0-24000rmin
Cooling mode Water cooling
Working voltage AC220V5060 Hz ,2PHAC380V5060HZ,3PH
Drive Motor Japan servo motors and drivers
Command G code*.u00*.mmg*plt
Operating system NC Studio
Diameter of cutter 3.175-12.7
Work-holding By clamp
Applicable Industries:
Moulding industry,it can engrave all kinds of nonmetal moulding,especial for autocar foam
moulding,steamship wooden model,aviation wooden model,train wooden model,etc.
Musical instrument industry,it can engrave 3D surface of large scale musical instrument and
the contour cutting.
Applicable Material:
Metal,plastic,PVC,Wood,MDF,stone,etc.
