Full Height Turnstile

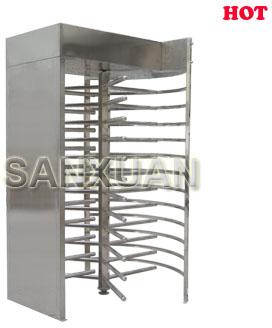

Full Height Turnstile SFHT-200A
The central column will be set free when power off to the request of fire protection.
When power on, the central column lock automatically.
The turnstile provides a basic tripod to control access smoothly and effectively by basic operation, and also prevent illegal in and out.
The machine is well in design, rustproof, durable and can resist external destroy.
According to different machine centers, full height turnstile can be divided into Motorized Full Heigth Turnstile and Solenoid Full Height Turnstile.
Their differences are Solenoid Full Height Turnstile can finish lock and unlock function by solenoid
With interface of switch of relay, compatible with all the access control system
It can be used for intelligent control and management of the passage after equipped with diffent access control system.
Function Descriptions:
Available in single walkway or bi-directional passage
A valid lock action can allow one passage at one time
It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be set up with the built-in small keyboard or software.
Emergency configuration: The central column will be set free when power off to provide a clear walkway for escape in the event of an emergency
Anti backup function to prevent reverse rotation once the arm has move 60 degree form home
Interface: one standard port-RS485
Control panel with count and LED digital function
Optional traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable pass
Framework-Specifications:
Framework: 304(default) /316 Grade Stainless Steel
Thickness of ply: 1.5mm/ 2.0mm
Finish: Brushed surface (default)/ polishing surface
Specification: 1630*1500*2300mm (Standard)
Weight: 150kg
Arms length: 670mm
Arm diameter: 38mm
The maximum tolerance of the pole: 20Kg
Working driving force of the pole: 3Kg
Working Environment: Indoor/Outdoor
Transit speed: 30-40 persons per minute
Temperature: -20 celsius to 60 celsius
Applications:
Typical areas of application are: office building, government building, hotel, super market, bank, park etc.
To find out more detail about this series, please contact us.
