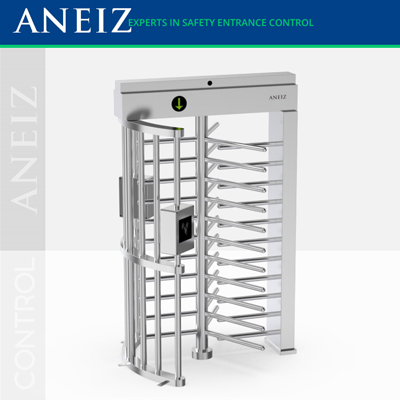

Full Height Turnstiles

Aneiz FHT10 full height turnstile-Support OEM and ODM. Support third-party biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner.

Aneiz FHT10 full height turnstile- is a high performance pedestrian control turnstile. Usually used in high pedestrian traffic flow in both directions to control pedestrian entry or exit in restricted areas

304 Stainless steel material, durable, high quality, for long lasting use.

The Aneiz FHT10 full height turnstile- features designed with standard relay signal, which can integrate easily to any kind of access control and fire systems through I/O (dry contact).

In case of emergency, when power goes off both directions are free.

Passing Direction: Single directional / Bi-directional.

FEATURES

Aneiz FHT10 full height turnstile - is not able to crawl underneath and climb over to gain unauthorized access. Besides, the gate adopts high quality 304/306 stainless steel to replace ordinary steel.

Aneiz FHT10 full height turnstile - Arm rotor will automatically release for free passage during power failure. This is complying with fire safety requirements.

Aneiz FHT10 full height turnstile - Solid body is used 304 SS material, making the gate adapt to serve environment especially suffer rainstorm or under blazing sun when installed at outdoor.

Aneiz FHT10 full height turnstile -The turnstile designed with consolidated and more durable mechanism, will not break even someone collide it, anti-collision and anti-kick function.

Aneiz FHT10 full height turnstile - The transverse bars joint at the middle of both sides, making the whole frame more solid and stable.

IR sensors detect unauthorized or abnormal access. Alarm buzzer function will be triggered when the user is passing thru without authorization, tail gaiting, illegal intrusion or incorrect direction.

Aneiz FHT10 full height turnstile -Multiple Operating Modes-optional

IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein biometric recognition, push button, ESD, wireless remote control, insert coins / card / wristband, digit counter...

Aneiz FHT10 full height turnstile TECHINCAL SPECIFICATION

Material  304 Grade Stainless Steel

Dimension        1460(L) X 1250(W) X 2180(H)mm

Arm Rotor        3 sections (120° rotor)

Passage Width         640mm

Throughput      35 to 40 people per minute

Response Time         ≤0.3S

Net Weight       150kg/pcs

Directional Mode     Uni-directional or bio-directional

Power Supply   AC220V/110V, 50/60Hz

Power Voltage24V DC

Power Consumption         40W

MCBF       5 million

Operating Temperature  -15 °C - 60 °C

Operating Environment   Indoor or outdoor

Relative Humidity    ≤ 95%

LED Indicators Red cross means gate open,

Green arrow means gate closed

Warranty18 Months
