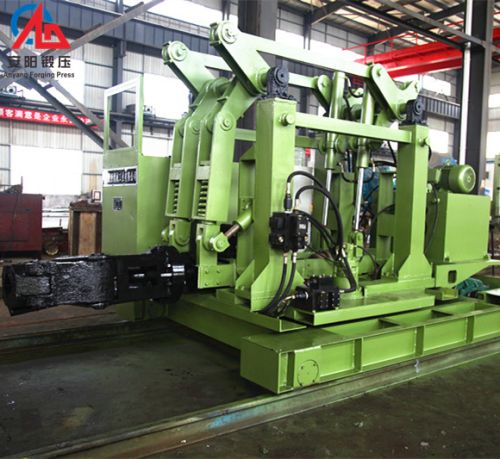

Full Hydraulic Heavy Loads Manipulator For Hot Forgings Transport

We offer t31 series forging manipulator. Forging manipulator has fully hydraulic and mechanical-hydraulic mixed driven types. Forging manipulator is used to operate open die forgings under hammers and presses. It has manipulator walk, clamp clamping, the clamp head rotate, clamp frame lifting, clamp frame rotating etc functions. Instead of people, the hydraulic heavy load's manipulator can transport heavy and high-temperature billet or forgings. Features of forging manipulator: 1. Efficient forging process and high performance. 2. Operational costs will be reduced significantly. 3. Rapid movements with the highest precision will be achieved. 4. The quality of the forgings, as well as the capacity of the production line, can be significantly increased. Parameter of T31 series forging manipulator Machine type: T31-5 Nominal force: 50 KN Max holding moment: 120 KN*m Holding range: 150-800 mm Clamp center height: 1050-1750 mm Clamp rod lifting speed: 5 m/min Clamp nose up degree: 7 Clamp nose down degree: 12 Clamp rotate speed: 18 r/min Manipulator moving speed: 25 m/min Manipulator rail distance: 2300 mm Working oil pressure: 15 MPa Total motor power: 84 Kw Machine outside size: 7700*3630*3660 mm
