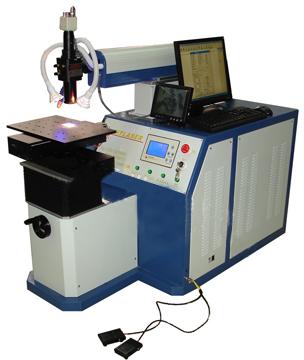

Fulll Automatic Laser Welding Machine

We are offering fulll automatic laser welding machine.
Principle of operation:
cc-al200 series of automatic laser welding adopts laser, laser power, internal circulation cooling system, control system, control system, work platform integration design, has the features of reliable performance, compact structure, beautiful appearance, convenient operation, small occupation area, cc-al200 series of automatic laser welding.and the use of switching power supply, through the contact operating panel and select the laser output power, frequency and pulse width.with misoperation and over temperature automatic protection function.
through the remote controller or a touch operation panel and select the output power of the laser, frequency and pulse width, and set the speed of working table, moving around the operating table, match the requirement of welding parameters and welding, the weld joint, which produces a smooth or has to the welding effect reaches the best.
machine features:
the british imported ceramic condenser chamber, corrosion resistance, high temperature resistance, the cavity lifetime (8-10) years, hernia lamp life more than 8000000 times.
the laser head can be rotated 360°
the spot size of electric control.
can manual welding, also can be ture automation and batch production.
technical parameters:
fulll automatic laser welding machine
equipment type cc-alw200 cc-alw400
maximum laser output power 200w 400w
laser wavelenght 1064nm
light spot adjustable range 0.1-3.0mm
pules width ≤20ms
welding frequency ≤50hz
aiming and location mode red light/ccd monitoring system(selectable)
numerical control system of table plc or pc
travel of table 200*200mm to 1200*1200mm
repeatability ±0.01mm
electric power demand 220v±5%/50hz/40a
cooling mode water cooling.
