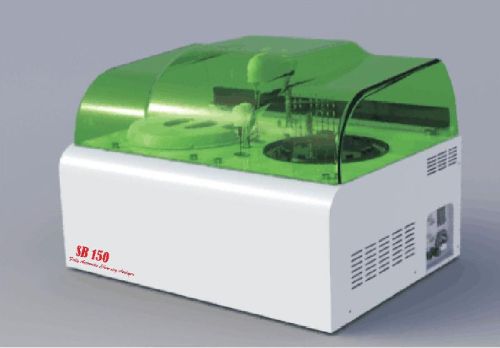

Fully Automated Clinical Chemistry Analyzer

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Situated in Delhi(India), ours is the name reckoned for providing quality products at competitive price. We stringently follow the safety packaging guidelines, thus we are flexible enough in....

View More Details

Send Enquiry

Company Information

Martand Medical Services

Dwarka, Delhi

View Number

Member Since 8 Years
Nature of Business Retailer
GST No. 07BARPK0496G1ZD

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Situated in Delhi(India), ours is the name reckoned for providing quality products at competitive price. We stringently follow the safety packaging guidelines, thus we are flexible enough in delivering the products to the clients. We only use the finest packaging material to evade loss during transit.

Details :

Model - SB150
100 test/ hour
Discreet, open/ closed (Optional), fully automated
Serum, Urine, Plasma, CSF, Other body fluids
Photometric and HIAS (Homogeneous Immuno Assays)
9: 340, 405, 450, 510, 546, 578,
620, 660, 690nm
End Point, Fixed time, Rate-A, Rate B, MultiPoint
Non Linear
25 for standard cups/ primary tubes/ STAT
2-50 µl (adjustable in 0.1 µl step)
STAT sampling at any position
25 for 20mL bottle size
10 – 350 µl (adjustable in 1 µl step)
15^oC below ambient room temperature (approx 25^oC)
180µl to 500µl
Vertical & horizontal obstruction detection
Inventory management by Capacitance based sensing
37^oC ± 0.2^oC
Max 6 calibrators per test with auto-dilution
K-Factor, Linear (one, two and multipoint), Logit-log
(4P and 5P), Spline, Exponential
and Polynomial
Tri level Daily and Monthly L J Graphs with Multi
QC Rules
By paddle mixer with variable speed (Low/ Middle/ High)
Pre/ Post dilution for >Linearity & Substrate Depletion
7 stages cuvette washing with drier chip
Online for Reaction and Calibration curve

Specifications 01

Sample volume	2-50µl (adjustable in 0.1 µl step)
Reaction volume	180µl to 500 µl
Reaction temperature	37^oC ± 0.2^oC
Reaction time	Single reagent chemistry : 30-600 sec,
Reaction time	Doble reagent chemistry : 30-300 sec
Calibration	Maximum 20 calibration can be used 6 calibration maximum per test On-board auto dilution of Cailbrator
Mixing type	Variable speeds paddle mixer (Low, Middle, High)
Manintenance	Auto scheduling – Start of Day, End of Day
Identification	Position Identification for samples and reagents Fixed Bar code reader for Identification for samples
Water supply unit	NCCLS Type 2 : Up tp 4.5 liters/hour (approx)
Quality control	Up to 3 levels programmable for every parameter
System Warm-Up	10 minutes system warm-up time
Level sensing and safety	Vertical & horizontal obstruction detection Capacitance based liquid level sensing
Noise level	Less than 65 dB with cover closed
CPU & Display	P-IV with (1GB) RAM, 40 GB or Higher Hard Drive, CD-RW, suitable WIN OS 15 inch TFT color display
Keyboard	Standard keyboard & standard mouse
Printer	External : A4 Size Deskjet color printer (Optional)
System interface	Analyzer – PC : RS-232C bi-directional, PC Printer -USB (Min 2 Ports) & a Serial Port PC – Host computer via serial RS232 or TCP/IP

Specifications 02

Item	Description
Throughput	100 test/hour with 1/2 reagent
System type	Discreet, open, fully automated, patient prioritized, selectable 1/2 reagent system
Sample	Serum Urine Plasma CSF Others
Measurement prinicple	Latex Enhanced Turbidimetric Immunoassay Turbidimeteric Immunoassay Photometric (Rate/end point)
Onboard Reagent Positions	25 positons of 20 ml bottles for R1/R2
Programmable parameters	50 photometric tests
Assay modes	End Point Fixed time (2-point) Kinetic Rate -A Kinetic Rate -B
