Fully Automated Line Leakage Tester

Listing ID #2073050

We are offering fully automated line leakage tester: model-model 620l.

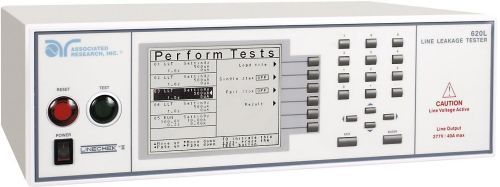

the linechek® model 620l is a fully automated line leakage tester that can be configured to perform 8 of the most commonly required line leakage tests. The 620l has the most common measuring devices (md's) already incorporated into the instrument and can perform patient lead tests with an optional scanning matrix. The 620l also features a continuous run capability which allows the dut to be run without shutting down between line leakage tests. This remains true even in reverse polarity conditions. With advanced features and capabilities the 620l can measure the voltage drop across measuring devices for compliance to iec60065 and iec60990, record the maximum rms or peak leakage current during a test, and comply with iec60601-1 for ac, dc, and ac+dc leakage measurements. When configured with an optional run test feature, the 620l can also monitor minimum and maximum readings for voltage, current, watts, power factor, and leakage current.
ethernet, usbrs-232 or gpib communication interfaces allow for the automated control of the instrument.
most required for electrical safety compliance.
