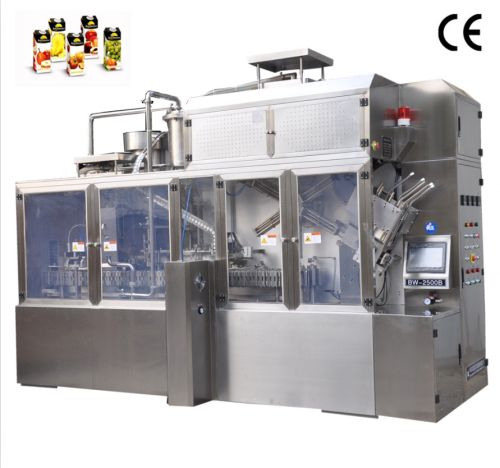

Fully Automatic Beverage Carton Packaging Machine

We offer fully automatic beverage carton packaging machine. Bw-2500 type automatic juice cartoning sealing machines is automatic with top configuration. The entire machine is made of 304 food-grade stainless steel, and the surface is special processed to be beautiful.
1. Work flow:
put cardboard into carton holder (manually) --- bottom preforming --- bottom heating and sealing --- ultrasonic capping (optional) --- filling --- top preforming --- top heating and sealing --- date printing --- finished product
the whole process is controlled by plc, and only need one person to operate.
2. Suitable for filling:
various kinds of dairy products, such as milk, yogurt, cream, soy milk, beaten egg, etc.
3. Technical parameter:
(1) capacity: 250--1000ml (can be filled by one machine)
(2) output: 1800-2500 cartonshour
(3) packing material: cardboard carton aluminium foil carton
(4) capping: with capping (optional)
(5) shelf life: milk, yogurt: 7--21days ( 2-6 degc storage)
(6) filling temperature: 2-50 degree centigrade
(7) overall power: 25kw (three phases of electricity)
(8) compressed air pressure: 1.0-1.4 mpa, flow rate: 1.4-2m3min, without oil, water and dust
(9) cooling water: flow volume: ≥ 40l min temperature: ≤ 30 degc
(10) size: (l*w*h): 3.7m*1.6m*2.8m net weight: 3500kg
(11) installation requirement: any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.
