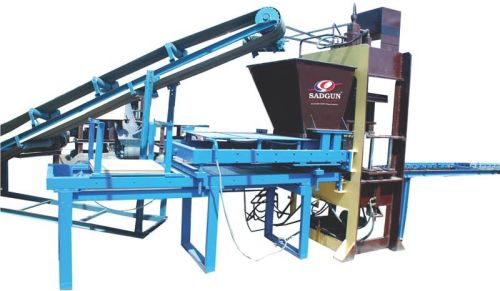

Fully Automatic Brick Making Machine, Packaging Type : yellow & cofee

We are engaged in manufacturing and supplying fly ash brick making fully automatic machine with following features:
heavy duty m.s. Fabricated stationary chassis of angles, channels and sheet fitted with hydraulic jacks for compression of 70 tons hydraulically operated power pack with a 7.5hp ac motor, sweep, and plate vibrating system, hardened molds to release 8 (eight) bricks in one stroke having dimensions of 225mm x 100mm x 75mm. Cycle period 22-25 seconds to give output of minimum 10,000-11000 bricks per shift of 8 hours
pan mixer of 1500mm diameter fabricated with structural mild steel with replaceable inner lining fitted with 5hp motor, oil filled reduction gear box for feeding hoper with a capacity to mix 500kg., of raw-material
belt conveyor to shift mixed activated raw-material from pan mixer to the feeder bin of the press. The ply rated 18 running feet rubber conveyor belt is mounted on structural m.s. Frame fitted with a 2hp motor, ample rollers and speed reduction pulleys with dust covered bearings for long and maintenance free smooth run
pallet truck to load, measure, lift and shift raw material from stocks to the pan mixer can also be used to lift and shift pallets for curing. This is a manually operated hydraulic pump on structural mild steel chassis with tyres
one year warranty on full machine with any time free services
main technology: vibration with haydraulic pressure
production capacity: 10,000-11,000 bricks per shift.
We provide capacity as per customers requirement
