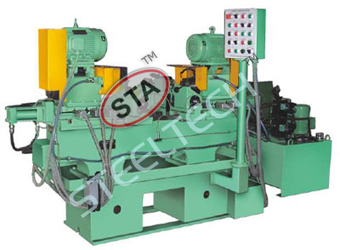

Fully Automatic Centering Plunge Facing Fachine

Centre Drill SizesBSS3 TO BSS6/as per ISI
Max. Plunge face Diameter63 mm
Max. Stroke of Slide50 mm
Total Machine Power • Spindle Power • Hydraulic Motor Power10.15 H.P 3 H.P/each 3 H.P
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Max. Stroke of Slide50 mm
Machine Weight1250 Kgs.
Max. job dia. clamped in vice125 mm
Job Clamping systemSelf Centering vice by Hydraulic motor force 2000 kg.
Admitted work length with Single vice min with Double vice min with Double vice max. 40 mm 110 mm 500 mm
Spindle speeds750, 1000 RPM
Min. job dia. clamped in vice15 mm
Rapid Travel Speed4200 mm/min
Coolant Motor0.15 H.P/40 lpm
Slide FeedingInfinitely variable with hydraulic.
Max. Plunge face Diameter63 mm
Centre Drill SizesBSS3 TO BSS6/as per ISI
Total Machine Power • Spindle Power • Hydraulic Motor Power10.15 H.P 3 H.P/each 3 H.P
Overall Size LxWxH2000 / 1300 / 1600

Two Spindles are supporated by two taper roller bearigs at both sides. Both head stock are slide feed by Hydraulic. One head stock permanently fixed & other is adujustable to accommodate different job length. Drive is by timing belt. Change of speeds is changing timing pulley.
