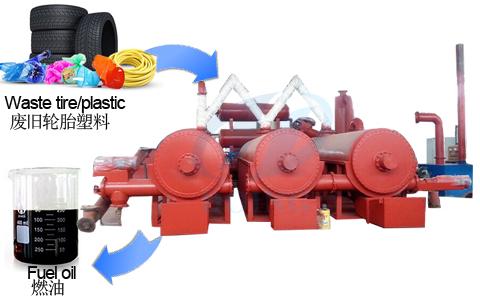

Fully Automatic Continuous Waste Tyre Pyrolysis Plant

We are offering fully automatic continuous waste tyre pyrolysis plant includes waste tyre pretreatment system, continuous pyrolysis system with continuous feeding and discharge system controled by plc system. The main part is the continuous pyrolysis system. Continuous waste tyre pyrolysis plant is for processing waste tyres into fuel oil and carbon black for recycle use. Due to continuous feeding and discharge system, the continuous waste tyre pyrolysis plant can keep working without stop, thus to save energy and time. Also plc control system makes much less labour cost.feedstock & product of fully automatic continuous waste tyre pyrolysis plant
for our continuous waste tyre pyrolysis plant, the applicable raw materials can be any kinds of waste tires, such as bicycle tires, motorcycle tires, car tires, truck tires, otr tires, etc.
Excpet the steel wire extracted out from waste tires in the first stage pretreatment process, the final products from waste tire pyrolysis process will be fuel oil and carbon black.working process of fully automatic continuous waste tyre pyrolysis plant
to keep continuous feeding and discharge system, it requires the waste tires should be in small size. So before continuous pyrolysis process, the waste tires should be shredded into small pieces. And to avoid the steel wire mix with carbon black after pyrolysis process which is difficult to separate, it’s better to remove the steel wire from waste tires at first. As for detailed process, please check as below:
1. Collect waste tires: all kinds of waste tires are available, from small car tires to big otr tires.
2. Remove steel wire: use a steel wire pulling machine to pull out the steel wire from waste tires. The steel wire pulling machine is operated automatically, which only need one work for operation.
