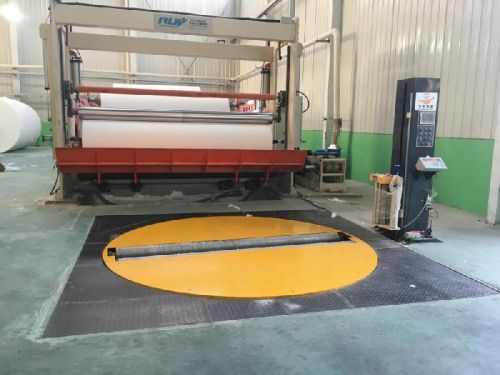

Fully Automatic Fabric Roll Wrapping Machine

Fully automatic Fabric roll wrapping machine, Non-woven roll wrapping film machine,Mini roll/paper mill roll  stretch wrapping machine.Model: YP2000F-AU. All the machine have the CE certification.Accept customer`s  design order, satisfy customer`s different requirements, install Pneumatocyst reel ejection system or Auto cut &  grab film after wrap finished. 2,Technical Parameter. YP2000F-L paper roll wrapping machine Size of the product to be wrapped Paper roll diameter 500-1600 mm  (Special can be made) Paper roll width 500-1600 mm  (Special can be made) Max weight capacity 2000kgs Machine Specification Turntable rotation speed: 3-12 rpm adjustable Turntable diameter 2000mm Turntable roller center distance 460mm Turntable roller diameter 150mm Turntable height 460mm Standard    Carriage Up/down speed Adjustable Power supply voltage 230 Volt 1 Ph - 50 Hz Power 2.3 Kw Machine size 3000mm x 2000mm x 2200mm (LXWXH) Machine weight 1080kg Packing efficiency 20-40 loads/hour Film Roll detail Max. external diameter (D): 230 mm Film roll height (h): 500 mm Film thickness:   17-35 µm Internal diameter (d): 76 mm Option Paper roll auto-ejection system   (Machine Model: YP2000F-AU) Top platen system        (Machine Model: YP2000F-CS) Turntable Slew bearing drive (Machine Model: YP2000F-BT) Other model paper roll wrapping machine picture: General model YP2000F-AU ope
