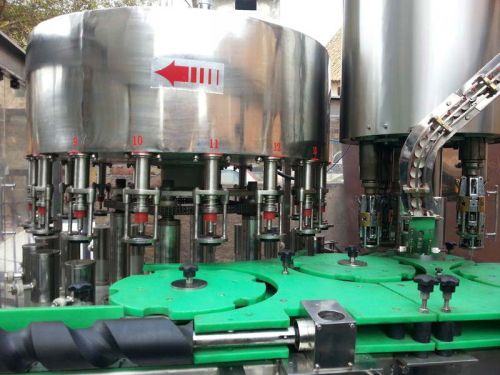

Fully Automatic Filler and Monoblock Head Sealer

The range of Fully Automatic Filler and Monoblock Head Sealers that we offer is equipped with Monoblock 48x12 Head. These Fully Automatic Filler and Monoblock Head Sealers have a sturdy construction and so have a long service life. The sealers are available to clients at market leading prices.
Attributes

• Easy to operate
• Less maintenance

Equipped with

• Efficient overflow control system that regulates the overflow and limits the wastage of liquor
• AC drive, which is used to control speed variation
• Variable speed pulley and AC frequency can be provided on additional cost

Features

• Sealing portion heights 2.5 meters
• The machine size of length 4.5 meters, width 2.6 meters and height 1.5 meters
• The machine is a combination of filler and sealer rotary type 48 head of filling and 12 head of sealing for high speed, smooth and precise operation
• Nozzle made of SS and the nozzle holding spares are made of alloy steel powder coated
• Conveyor length 4.5 meters fitted in side
• Nozzles are lifted by the help of upper cam
• BPM counter meter inside for extra cost
• The slat chain fitted in side made of MCC and body of conveyor of the sheet of 304
• In feed, worm used in the machine is made of derlin cast and star wheel and guide made of nylon cost
• Electrical BPM counter meter fitted in separate AC drive for internal conveyor
• The machine has no lifters
• The body of filling division made of MS plate covered with SS sheet and the body of sealing portion made of alloy steel forged
• Provision of fitting guala cap provided by changing
• Sealing heads are universal type Zigmaty as required

Range Available

• 20 x 8 head to 48 x 12 head
