product details:
| minimum order quantity | 1 unit |
| automation grade | automatic |
| brick type | paving blocks / blocks , solid |
| capacity (bricks per hour) | 7980 |
| method | hydraulic pressure |
| dimension | 6800*2090*3000mm |
| rating pressure | 21mpa |
| vibration | table vibration |
| pallet size | 1100*700mm |
| cycle time | 12-25sec |
model no:jj 8080cp

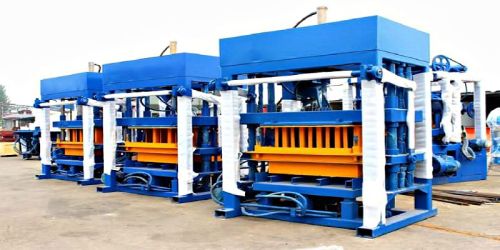

avail from us superior quality fully automatic fly ash bricks making machine that minimizes the requirement of wood & steel pallets by laying blocks on the concrete floors. The machine we supply use less cement and can produce any type of blocks. Further, these machines are fabricated from a superior quality material that makes them highly durable, resistance and more. Additionally, these machines require and plain wooden pallet for each freshly molded block and require very little space and can be easily moved.
technical data :
| dimension | 6800*2090*3000mm |
| rating pressure | 21mpa |
| vibration | table vibration |
| vibration frequency | 2800-4500r/min |
| pallet size | 1100*700mm |
| cycle time | 12-25sec |
| power | 43.88kw |
| weight | 9840kg |
specification and capacity of product :
| items | size (l*w*h) | pcs/mould | pcs/hour | pcs./8hours | one year(300)production |
| solid bricks | 230*110*75mm | 32 | 7680 | 61440 | 18432000 |
| blocks | 400*200*200mm | 7.5 | 1350 | 10800 | 3240000 |
| porous bricks | 240*115*90mm | 20 | 4800 | 38400 | 11520000 |
| paving blocks | 200*100*60mm | 27 | 3888 | 31104 | 9331200 |
