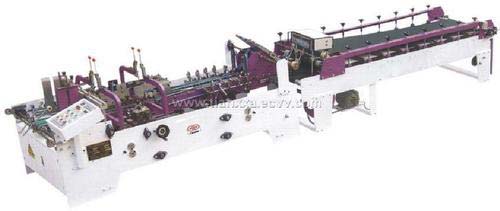

    Fully Automatic Folding Machine

    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    We are counted among the successful Manufacturers, Suppliers and Exporters of Fully Automatic Folding Machine. We manufacture the machines in compliance with set industrial norms. Courtesy our....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 17 Years
    • building Nature of Business Retailer
    • gst icon GST No. 06ASYPS0904K1Z6

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    We are counted among the successful Manufacturers, Suppliers and Exporters of Fully Automatic Folding Machine. We manufacture the machines in compliance with set industrial norms. Courtesy our brilliant logistics network, we are capable of delivering bulk orders of machines within the promised timeframe. One can obtain these at competitive rates from us.
    Details :

    • Fully Automatic Folder with Auto Bundlers offered provide for reliable and consistent process support and perfectly match up with the folding and automatic bundling requirements of the process.
    • Backed by latest technology support, these systems also ensure stable, high-speed production support with minimum waste.
    • Some of its features include lower noise and long services life, available in model choices of MG- 580B, MG -880B, MG -1200B; maximum speed of 240(m/min), sheet applicable for use is card board corrugated paper, maximum paper in size used is 350mm, 580mm, 1050 mm and others.



    Features :

    • There are four functions for the casting construction
    • Operation and adjustment are characterized by fasting speed.
    • High-speed production, sound stability (it is not easy to produce waste products)
    • The machine is difficult to become deformed
    • The machine is characterized by less troubles, lower noise and long services life.


    Specifications

    ModelMG- 580BMG -880BMG -1200B
    Maximum speed240(m/min)240(m/min)240(m/min)
    Sheet applicableCard board corrugated paperCard board corrugated paperCard board corrugated paper
    Pasting methodPasting by two sidePasting by two sidePasting by two side
    Automatic countingRandomly choose qty 0-9999 pcsRandomly choose qty 0-9999 pcsRandomly choose qty 0-9999 pcs
    Electric power single phase220v 3kw220v 3kw220v 3kw
    Max paper in size350mm580mm1050mm
    Min paper size70mm90mm180mm
    Max finished products in size170mm320mm500mm
    Min finished products in size30mm40mm80mm
    Longest paper500mm800mm1200mm
    Shortest paper50mm50mm80mm
    Min pasting side6mm6mm10mm
    Overall dimension5800x800x1300mm6800x1100x1300mm9000x1500x1600mm
    Weight of machine2000kg2000kg35000kg
