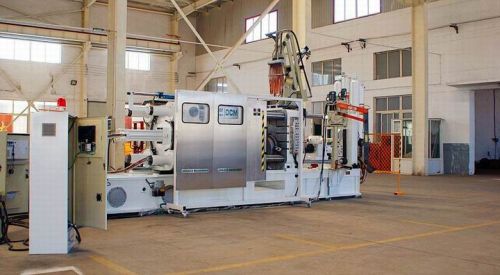

Fully Automatic High Pressure Cold Chamber Die Casting Machine

We are offering fully automatic high pressure cold chamber die casting machine.
jinghan cold chamber die casting machines(clamping force160ton--2000ton) are controlled by electric devices and hydraulic systems, which can completely operated by manually semi-automatically or automatically.because of their adopting toggle mechanism,the machines have a high rigidity and a reliable stability while running.the injection system is constituted of four-step injection and a specially quick track devices.the hydraulic system is constituted of imported,world-famous brand,flow complex proportion valve(pq) and direction valve.the electric system is equipped with imported ,special controls(computers),or with imported, top grade plc controls. All those ensure that the whole machine works accurately and efficiently.meanwhile ,all the technological parameters are allowed to be adjusted independently to meet various technique requirements.
main features of machine
1.central electrical lubrication system for regular lubricating prolongs toggle system service life
2.imported high and low pressure dual-pump control systems with good performance and low noises.
3.imported lineal transducer for accurate stroke control of die open and die close.
4.pressure ,slow adopt proportional server valve control system to make it fast response,high precision.
5.the hydraulic oil motor gear die regulating mechanism features simple operation and accurate die adjustment.
6.electric proportional cartridge valve instead of hand wheel adjustment,injection velocity can be digital tunning. Injection automatic data storage and management,the injection process can be done continuously control, high degree of automation.
7.duel circuit in 4 graded pressure injection and super charging are free from disturbances from each year.using large capacity insertion valve enables higher injection speed,with shorter time for pressure establishment.
8.imported mitsubishi plc control system.stable performance,low failure rate.electrical components using the french schneider brand. Sensitive response, accurate control.
9.tie bar bold chrome to make sure it boast high strength,no deformation.
10.finite element analysis platen, with rational stress distribution, little distortion and precise die close.
11.using a special polymer wear-resistant materials oil foot sliding , adjustable height , a balance weight, reliable and durable, forming regional cleaner.
12.tie bar bold chrome , wear resistance, high strength, ensure to deformation.
13.fast response , stable performance of the servo motor system configuration , high precision , high sensitivity pressure feedback device, to form a closed loop of precision control , to ensure that customer requirements are best product stability.
14.with the electro-hydraulic servo valve with bypass precision oil filter, ensure cleanness of hydraulic oil, improve machine performance.
15.large die casting machine equipped with hydraulic pumping rod device, to solve customer extra wide mold and lifting restrictions under the mold installation problems.
16.precision shot speed gauge and high sensitive pressure sensor.
the main components of machine:
plc--mitsubishi electric
main directional control valve--rexroth
high pressure hose--awequip(usa)
lineal transducer--novotechnik
alternating current contactor--schneider
air switch--schneider
proximity switch--omron
hydraulic oil pump--vickers
motor--holley
double proportional valve--yuken
lubricating pump--sanlang
we have agent in india,therefore after sale service is first-class.
