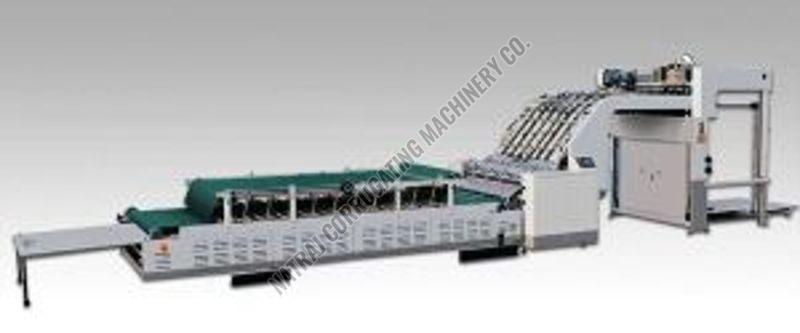

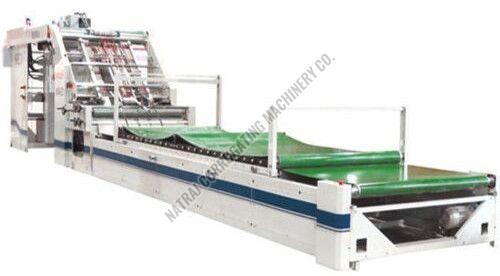

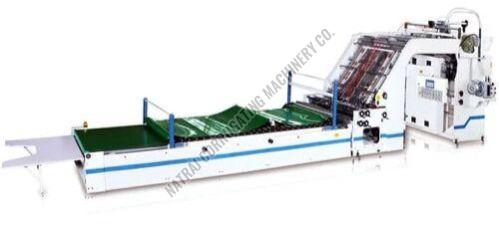

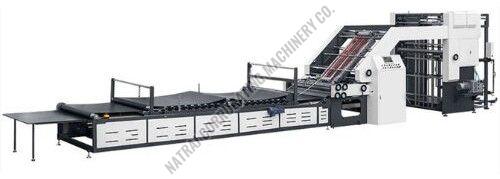

Nagpal Natraja Electric Fully Automatic Laminator, Color : White

₹ 22 Lakh - ₹ 27 Lakh / Set

MOQ1 Set(s)
Driven TypeElectric
Automatic GradeSemi Automatic
CertificationISO 9001:2008
Brand NameNagpal Natraja
Supply TypeManufacturer, Exporter, Supplier, Retailer, Importer
Preferred Buyer Location All over the world

Company Information

Bamni Khera, Palwal, Haryana

4.6/5

Member Since 15 Years
Nature of Business Manufacturer
GST No. 06ACJPN8265D1ZG

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

After-Sales Service ProvidedAvailable
Brand NameNagpal Natraja
Total Carbohydrate1 Year
Driven TypeElectric
Power9-12kw
Automatic GradeSemi Automatic
ConditionNew
Country of Origin380V
Availability4000-5000kg
ApplicationLaminating Machinery,Board to board pasting
CertificationISO 9001:2008
Number Of FlowerAutomatic Flute Laminating Machine, Semi Automatic Flute Laminator
NameAutomatic flute laminator

Technical Description:

This 1450 mm flute laminator is designed for precision lamination of top sheet to bottom corrugated sheet in the packaging and printing industry. Engineered for high productivity, excellent bonding, and easy operation, the machine handles a wide range of sheet types and thicknesses, including 3-ply and 5-ply corrugated boards.

Specifications:

ParameterValue

Maximum Sheet Size	1450 × 1100 mm
Minimum Sheet Size	350 × 350 mm
Top Sheet Range	180 – 400 gsm
Bottom Sheet Options	≥300 gsm cardboard, E/A/B single face, 3-ply & 5-ply boards
Speed	0 – 100 sheets/min (depending on paper quality and thickness)
Machine Length	12.6 meters
Machine Width	2.3 meters
Machine Weight	6800 kg
Power Requirement	13 kW

Features:

Compatible with a wide range of flute types (E, A, B) and corrugated structures (3-ply, 5-ply)
High-speed lamination with variable control for different materials
Stable performance with precision glue application and sheet alignment
Compact design with robust steel frame for durability and long-term operation
Ideal for both printed and blank top sheets with accurate registration

Machine Specification

item	Description	Quantity
1.	Plastic Tank f Keeping glue	1 pc
2.	Tool Box	1 pc
3.	Hexagon Spanner	1 set
4.	Grease Gun with Hose	1 set
5.	300mmFlexible Spanner	1 pc
6.	Cross & Flat Tip Screw Driver	1 set
7.	Box Spanner13-15 16-18 17-19	1 set
8.	13-15 16-18 17-19 , Spanner Wrench	1 set
9.	Steel Ladder	1 pc
10.	Oil Pot	1 pc
11.	Wedge	4 pc
12.	spray Paint	1 Bottle
13.	Operation Manual (English)	1 set
14.	Wood Pallet for Top Feeder	10 pc

Standard Spare Parts

item	Description	Quantity
1.	Timing Belt	2 pc
2.	Pick Up Sucker	10 pc
3.	Forwarding Sucker	30 pc
4.	Filter For Vacuum Pump	1 set
5.	Spring Sheet	8 pc
6.	Oil Seal (No need for our machine)	1 set
7.	Fuse 6A(No need for our machine)	2 pc
8.	Button Switch	2 pc
9.	Spare Screws and semi-cercle head	1 box
10	relay	4pc
11	Solid relay (No need for our machine,we use Schneider contactor)	2pc
