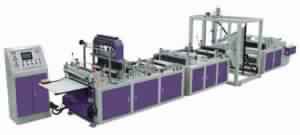

Contact SupplierThis machine is suitable for the non-woven materials, can process a variety of different sizes, different shapes of the non-woven bags, flat bag, handbag, vest bag.
Â
It is equipped with computer touch screen operation, step motor and photo electricity to track, accurately and steadily. There are control devices like auto-counting alarming, auto-punching etc., which make the finished products well-sealed with advanced Ultrasonic-bonding technology (wireless sewing), Auto tension control and accurate nice-cutting with high speed and efficiency. It is an ideal environmental protection friendly bag making equipment.
Â
MODEL |
BS-700 |
Machine Dimension |
L- 9550mm, W-1900mm, H-2300mm |
Production speed |
10-70 PCS/min |
Total Power |
9.5 kw |
Power Supply |
3 phase |
Weight Approx. |
3000 Kgs. |
Man-power Required 1 Skilled /1 Unskilled |
|
Bag Making Width |
100-800 mm |
Bag Making Length |
200-680mm |
Bag Making Thickness 40-100 gsm |
