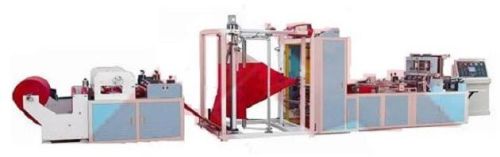

Fully Automatic Non-woven Fabric Bag Making Machine

We are offering fully automatic non-woven fabric bag making machine.this machine applies for non-woven materials.it can make flat & d-cut type bags.
It is equipped with computer touch screen, step motor and photo electricity to track, accurately and steadily. There are control devices like auto-counting alarming, auto-punching etc., which make the finished products well-sealed and nice-cutting with high speed and efficiency. It is an ideal environmental protection bag making equipment.
flat bag
model 600 700 800
bag size the max.bag width of vest bags:550mm;
and length can be controlled by computer;
the max. Bag length of flat bags: 550mm,
and the width can be controlled by computer. the max.bag width of vest bags:650mm,
and length can be controlled by computer;
the max. Bag length of flat bags: 650mm,
and the width can be controlled by computer. the max.bag width of vest bags:750mm,
and length can be controlled by computer;
the max. Bag length of flat bags: 750mm,
and the width can be controlled by computer.
Power 220v 220v 220v
gas power 0.5—0.6mpa 0.5—0.6mpa 0.5—0.6mpa
total power 10.5kw 11.5kw 13kw
production speed 10—100 pcs minute 10—100 pcs minute 10—100 pcs minute
overall dimension
(l×w×h)mm 8600 ×150 × 2100 9600 ×160 × 2100 10600 ×170 × 2100
