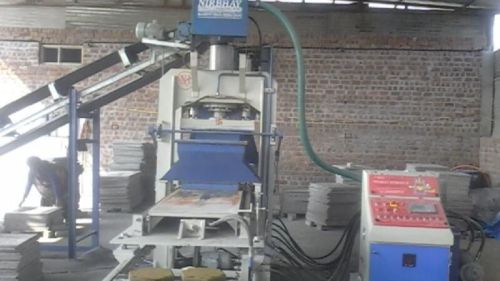

Fully Automatic Paver Block Machine (NH-1019)

We source the required raw material from the certified places after complete quality confirmation. As a result of which, the finished products comply with elevated industry standards. Owing to our huge logistics network, timely delivery of the placed orders is always executed!

Details :

• Maximum High Pressure Capacity - 125Ton
• Total power Required - 24HP
• Oil Tank Capacity - 400ltr(Hydraulic Oil 68 Number)
• Manufacturing Capacity -  Paver Block 4Pcs. in one operation
• Paver Block Production Capacity -  4500 to 6000pcs 8Hrs.
• Manufacturing Capacity -  Fly Ash Bricks-8pcs in one operation
• Bricks Production Capacity -  11000 to 13000pcs 8Hrs.
• Double Feeder Facility For Production of interlocking paver block
• Single Feeder facility for production of fly ash bricks
• Bricks pallet Size - 23”x23” inch ,Thickness 18mm
• Raw Material - Stone Dust,Stone Chips,Cement,Color
• Labour - 8 unskilled and 1 skilled

General Technical Information :

• Piston is Hard Chrome.
• Wiper on cylinder top.
• Super Vibration and pressing Systems for Maximum compaction and strength.
• Discharge of finished product through conveyor belt for FASTER production.
• Automatic pressing and demoulding by preset auto timer control.
• The press is controlled by jeans of PLC.
• Fly Ash Bricks, made will have shining smooth finish.
• Safe Working conditions with electrical and mechanical interlock system.
• Indicative only. production depends upon the labour efficiency and mix quality.
• Higher Tonnages, Brick size as per customer specifications. standard brick size is 230 X 110 X 75 mm.
• Specifications are subject to change for improvement. specifications, eights, volume are approximate only.
• Manufactures may be introduce such alterations as they may deem fit without previous notice.
• machines can supplied as per customer’s specific requirements. Machine capacity mentioned is only for guidence. it will vary with materials.
