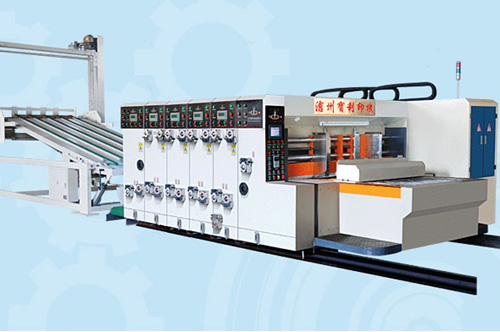

Contact SupplierWe are offering fully automatic printing stacker machine,
gyk high-speed ink printing pressing corner-cutting and slotting machine(printing slotter,printing slotting machine)
specifications:
high printing and slotting carton machine
high speed: 120pcsminmulticolor, from 1 to 4 or more colors for your choice
high speed printing and slotting machine
function and characteristics:
1push back kick plate feeding system configuration.
2with skip feeding function to perform bigger size carton
3all the transmission gears are made from quality steel through heat treatment and grinding.
4automatic set to zero and automatic reset.
5the middle knife moving to perform large-sized double-piece cartons
6the powerful cylinder main lock for the whole machine makes the system more stable.
technology parameter
item unit parameters
max paper coverage area mm 2600×1200
effective printing are mm 2300×1200
min finish size mm 500×400
thickness of printing plank mm 6
max speed piecesmin 120
economy speed piecesmin 90
frequency conversion power of main motor kw 15-30
topping precision(four colors) mm ±0.75
slotting precision mm ±1.5.
