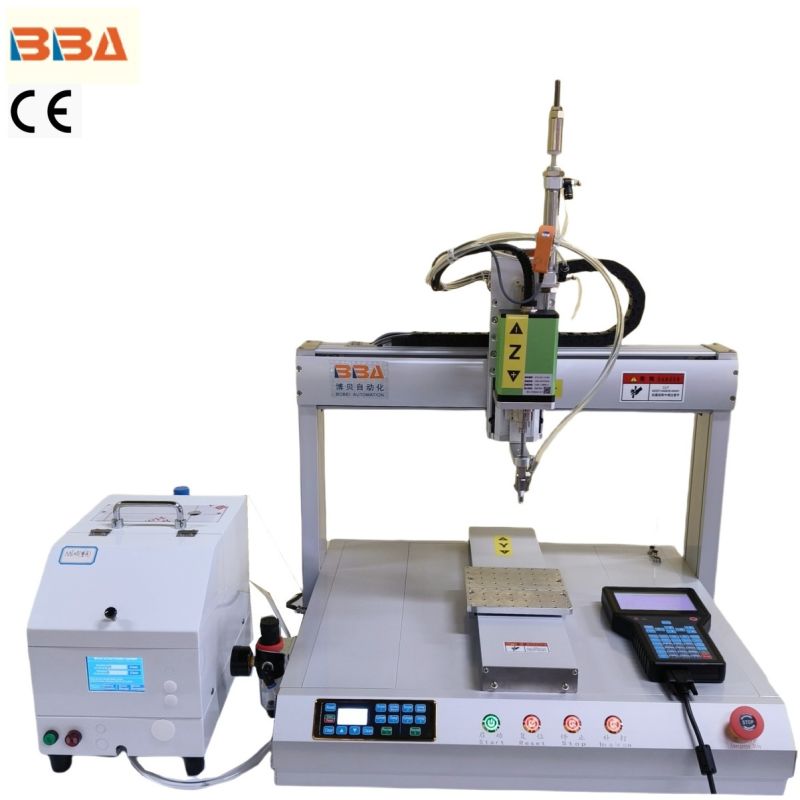

Penaumatic Fully Automatic Screw Machine, Brand Name : BBA

BBA Auto screw fastening robot with Twin Screw Feeder and Dual Screwdriver Heads for Simultaneous Two-Screw Assembly

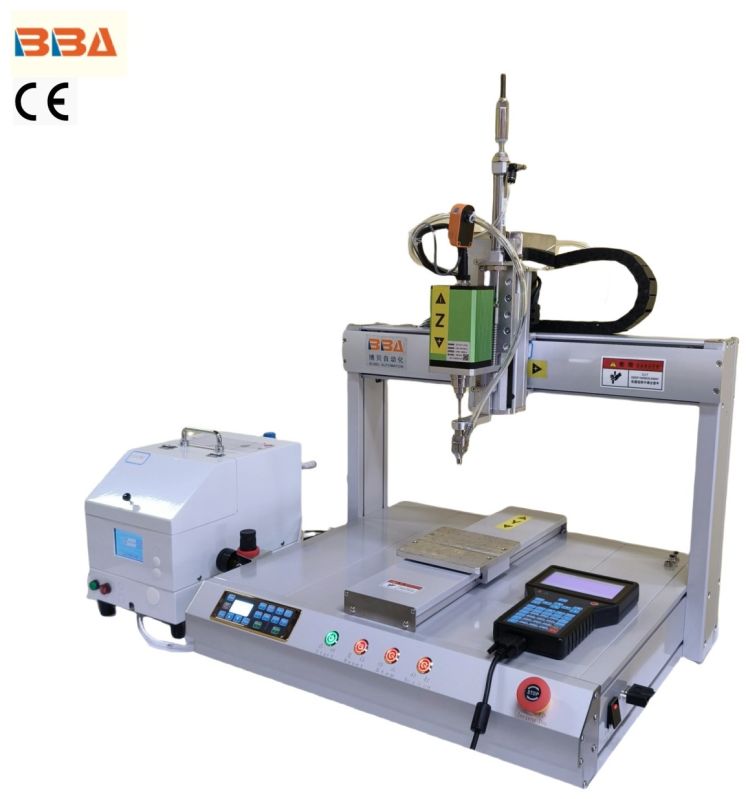

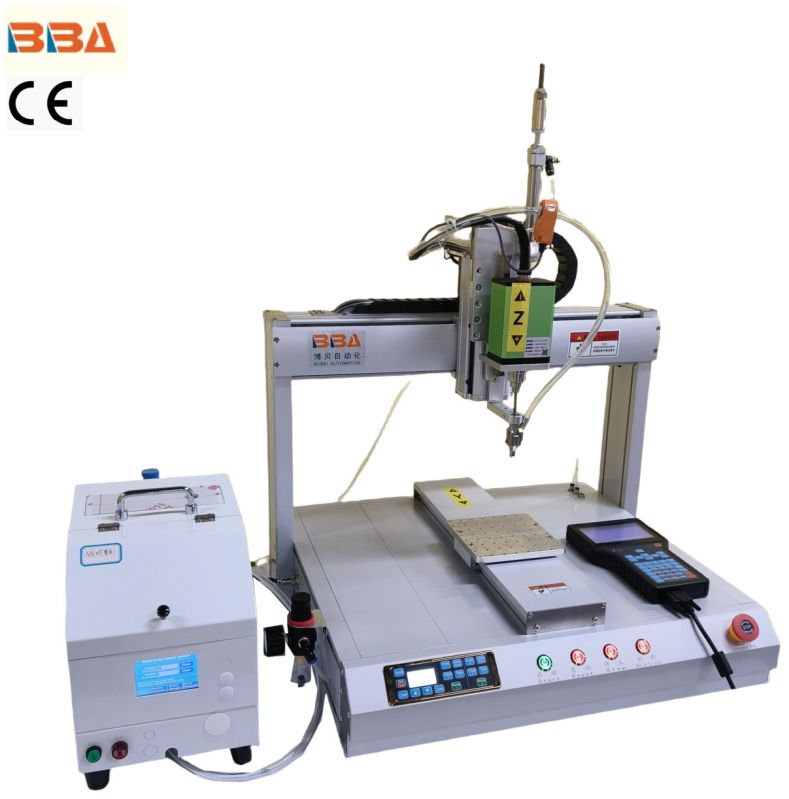

The machine consists of:

– A working table.

– A fixed frame/

– Two sliding platforms, each with a holder (fixture)

for workpieces. These platforms can move back and

forward along Y axis.

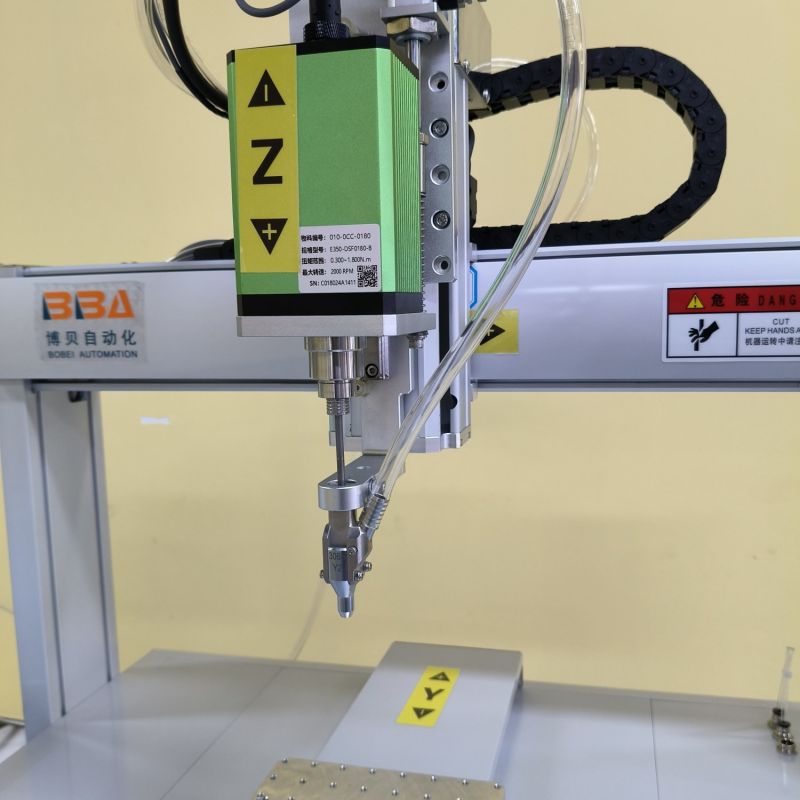

– 1 servomotor screw driver, which rotate screw

driver bits and can move right and left along the X

axis.

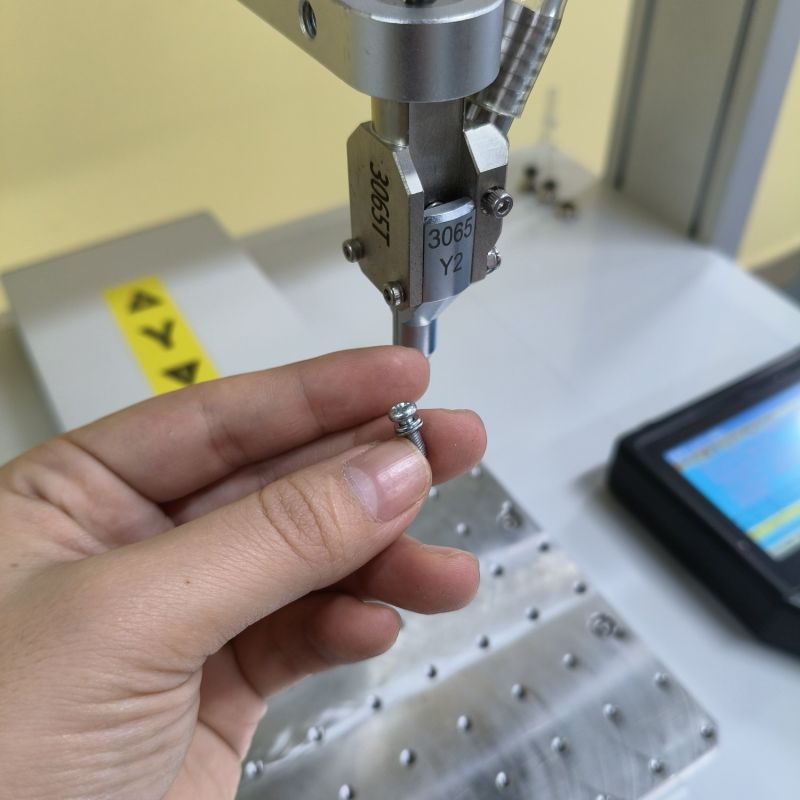

– 1 screw driver bit, which can move up and down

along the Z axis, rotating at the same time.

– Motion devices, which can drive the abovementioned parts along X/Y/Z axis.

– An automatic screw feed device.

– Data input sensors.

– A control system.

– A handheld programmer console.

Full Series of BBA Screw Assemble machinery

ModelBBA-331LSBBA-5441LSBBA-6441LSCUSTOMIZED

(Single Y platform)(Double Y platform)(Dual screw feeding systems)

Power supplyAC 110/220V 50/60HZ

StrokeX300mmX500mmX1/X2600mmTo order

Y300mmY1/Y2400mmY1/Y2400mm

Z100mmZ100mmZ100mm

Maximum Load Weight10KG (for work platform)To order

Screwdriver torque0.015~2.5N.mMore than 3.0N.m

Moving speed10-800mm/s

Air pressure0.5-0.7MPa

Position accuracy±0.02mm/axis

Program capacity999 groups/1000 points per group

Motor systemMicro Precision Stepping Motor

Transmission modePrecision toothed belt+ guide rail

Universal screwsM1-M8

Control panelHandheld Teaching pendant with display screen

Work efficiency1.5~2s/pcs

Work environmentTemperature: 5-50ºC               Humidity: 20-90%

Weight70kg90kg120kgTo order

External Machine Size(L*W*H)700*630*700mm820*730*700mm920*730*700mmTo order
